Slider Crank Mechanism

Application ID: 14651


This is a benchmark model to test the numerical algorithms in the area of multibody dynamics.

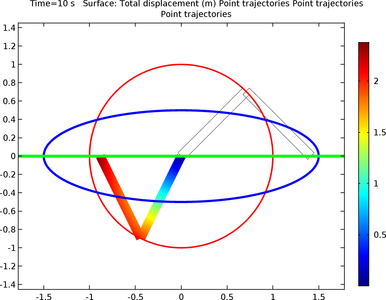

This model simulates the dynamic behavior of the slider crank mechanism. This mechanism goes through singular positions during its operation. The acceleration at a point is compared with the results from the reference.
