Modeling Gyroscopic Effect
Application ID: 15007
Gyroscopes are used for measuring the orientation or maintaining the stability of airplanes, spacecraft, and submarines vehicles in general. They are also used as sensors in inertial guidance systems.

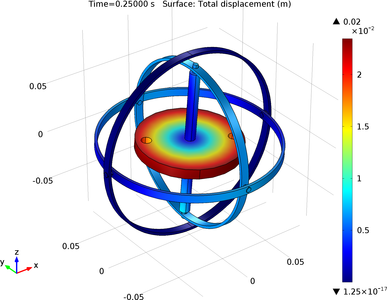

This model demonstrates the modeling of a mechanical gyroscope. It analyzes the response of the spinning disc to an external torque coming on the disc due to the rotation of the frame. It is shown that the disc is able to maintain it’s orientation when it is spinning with a high speed. This fact can be explained with the principle of conservation of angular momentum.
In the second part of the model, the motion of a spinning top is analyzed. The external torque induced precession and nutation motion of the spinning top is computed.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Grille des Spécifications and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
