Heat transfer

Posted 8 déc. 2014, 16:05 UTC−5 Heat Transfer & Phase Change, Modeling Tools & Definitions, Parameters, Variables, & Functions Version 4.4 0 Replies

Karan Bikkannavar
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello,

I am trying to simulate Joule Heating analysis on a 2d geometry. After running the simulation, I observe that there is no heat conduction through all surfaces!

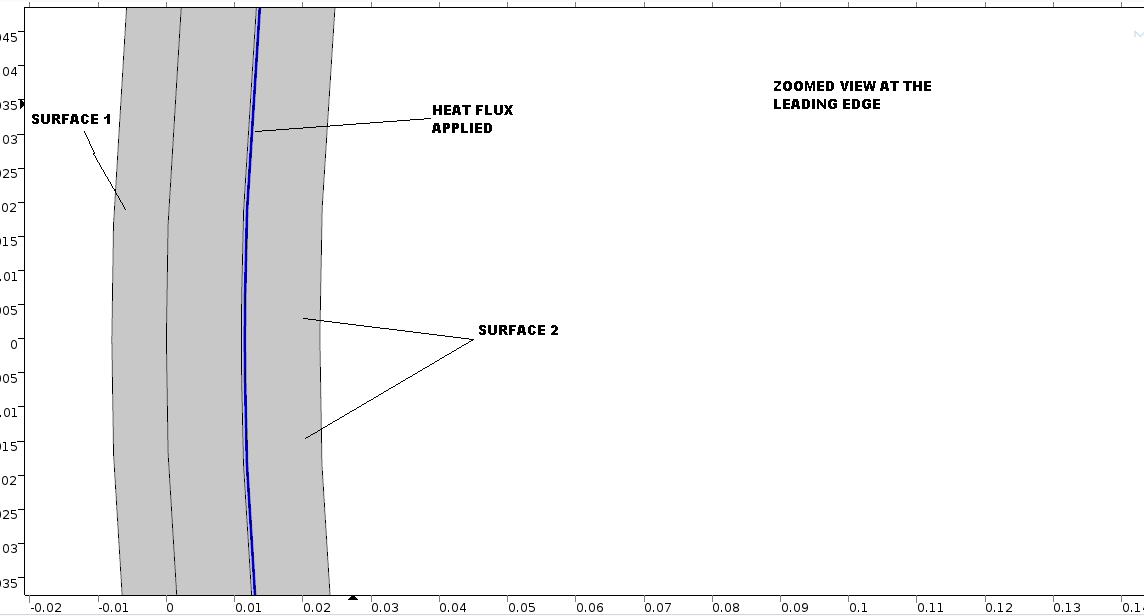

Geometry- four curved surfaces as shown in the attached file. Note that there is an identity pair formed due to Assembly formation.(Please check the comsol file )

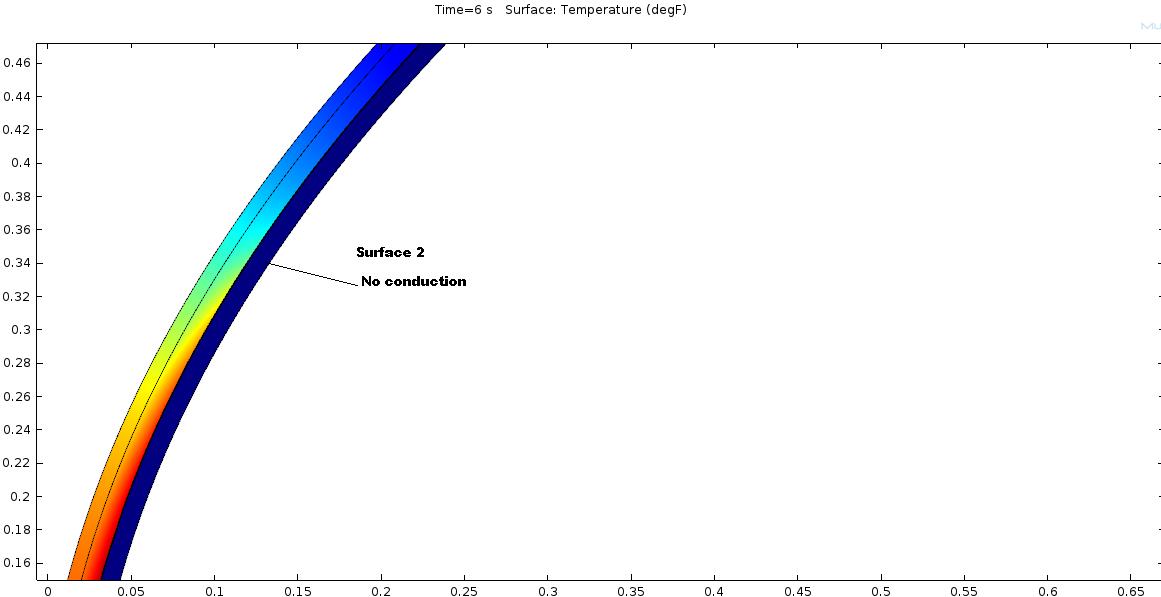

Results show no conduction or heat transfer through surface 2.. In real, it should!

May I please know what changes should be made.
0 Replies Last Post 8 déc. 2014, 16:05 UTC−5
