calculating pressure

Posted 22 févr. 2022, 09:10 UTC−5 Structural & Acoustics, Structural Mechanics 0 Replies

S Y
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello all,

Is this possible to solve the following problem in Comsol?

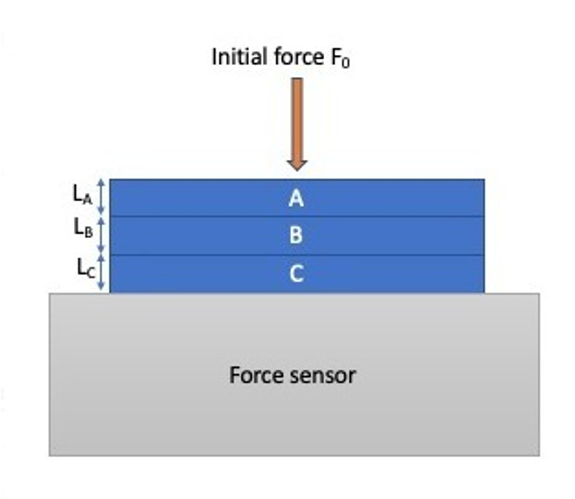

According to the figure attached, at time=0 the force sensor is reading F0, and the thicknesses of materials A, B and C are LA=LA0, LB=LB0, LC=LC0.

Now the question is what force value the force sensor reads by time if the thickness of LA and LC changes by time? or the reverse, assuming that we have the profile of force-time and variation of the thickness of material C (LC), then how can we find out the variation of the thickness for material A (LA).

I appreciate your help.

Attachments:

0 Replies Last Post 22 févr. 2022, 09:10 UTC−5
COMSOL Moderator

Hello S Y

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
