CutPoint 3D and mesh

Posted 6 avr. 2011, 04:38 UTC−4 Results & Visualization Version 4.1 5 Replies

Malvina Billeres
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam


When defining a CutPoint 3D grid, I obtain more points than in my defined mesh : how points of the CutPoint grid are obtain from the mesh ?

Which type of interpolation is used?

5 Replies Last Post 7 avr. 2011, 09:27 UTC−4
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 6 avr. 2011, 05:44 UTC−4
Hi

I'm not sure about the interpolation level (probably 2nd order or linked to the shape function order) but the points you define are interpolated from the closest mesh points (from my understanding)

To visualize the mesh points and edges, use a the WIREFRAME rendering for your results, with no smoothing enhancement (see under Quality in your plots node)

--
Good luck
Ivar
Hi I'm not sure about the interpolation level (probably 2nd order or linked to the shape function order) but the points you define are interpolated from the closest mesh points (from my understanding) To visualize the mesh points and edges, use a the WIREFRAME rendering for your results, with no smoothing enhancement (see under Quality in your plots node) -- Good luck Ivar
Malvina Billeres
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 6 avr. 2011, 06:52 UTC−4

Thanks you Ivar.
I guess that people at COMSOL should know or can I find this information somewhere ?

Thanks you Ivar. I guess that people at COMSOL should know or can I find this information somewhere ?
Malvina Billeres
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 7 avr. 2011, 05:56 UTC−4
Ivar,

I do not have any Quality option in the node menu.
Thanks for your help.
Ivar, I do not have any Quality option in the node menu. Thanks for your help.
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 7 avr. 2011, 07:46 UTC−4
Hi

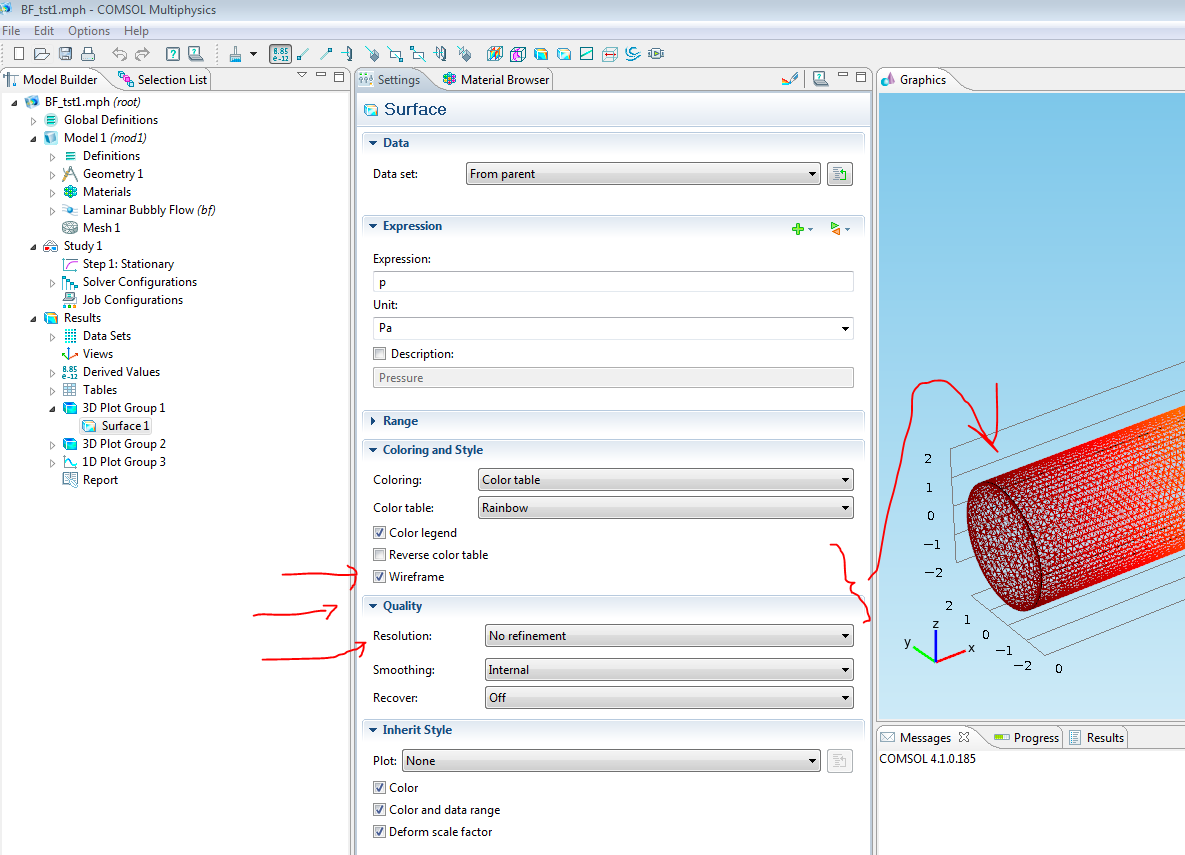

I do see below

--
Good luck
Ivar
Hi I do see below -- Good luck Ivar

Attachments:

Malvina Billeres
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 7 avr. 2011, 09:27 UTC−4
thank you very much Ivar.
thank you very much Ivar.
