Ray Optics - Intensity on a plane - Source and Collimator

Posted 2 nov. 2017, 08:36 UTC−4 Ray Optics Version 5.2a 0 Replies

SimonG
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

hello,

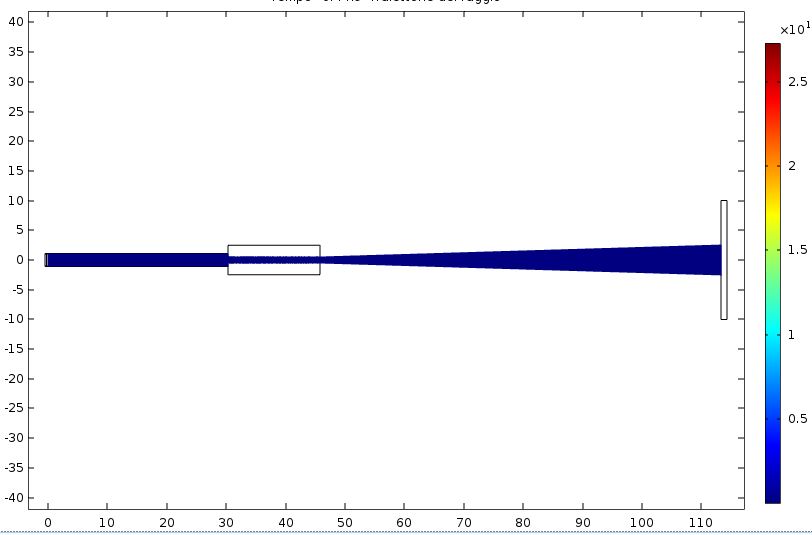

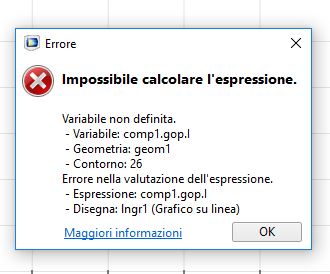

I'm trying to perform a simply simulation of a source + collimator (made of two rectangular boxes with "Freeze" condition) and evaluate with the Ray Optics the intensity on a plane. The model was made in 2D, os I added a 1D plot to the results, following this instructions "https://www.comsol.com/video/simulating-ray-optics-with-comsol-multiphysics" but appears a Dialog Error Box in which says that the variable is not defined (comp1.gop.I).

I attached my comsol file, hoping that someone could help.
