Plot all eigenmodes

Posted 21 nov. 2016, 04:28 UTC−5 MEMS & Nanotechnology, MEMS & Piezoelectric Devices, Results & Visualization Version 5.2 1 Reply

Patrick Witzel
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hey,

I have a MEMS model, where I simulate an actuated polymere on a foil. I calculate the eigenmodes of that and want to show all the eigenmodes next to each other in one 3D plot.

Additionally, it would be nice if you can animate the modes in this view. I could only animate one mode, yet.

Best
Patrick
1 Reply Last Post 21 nov. 2016, 08:46 UTC−5
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 21 nov. 2016, 08:46 UTC−5
Hello Patrick,

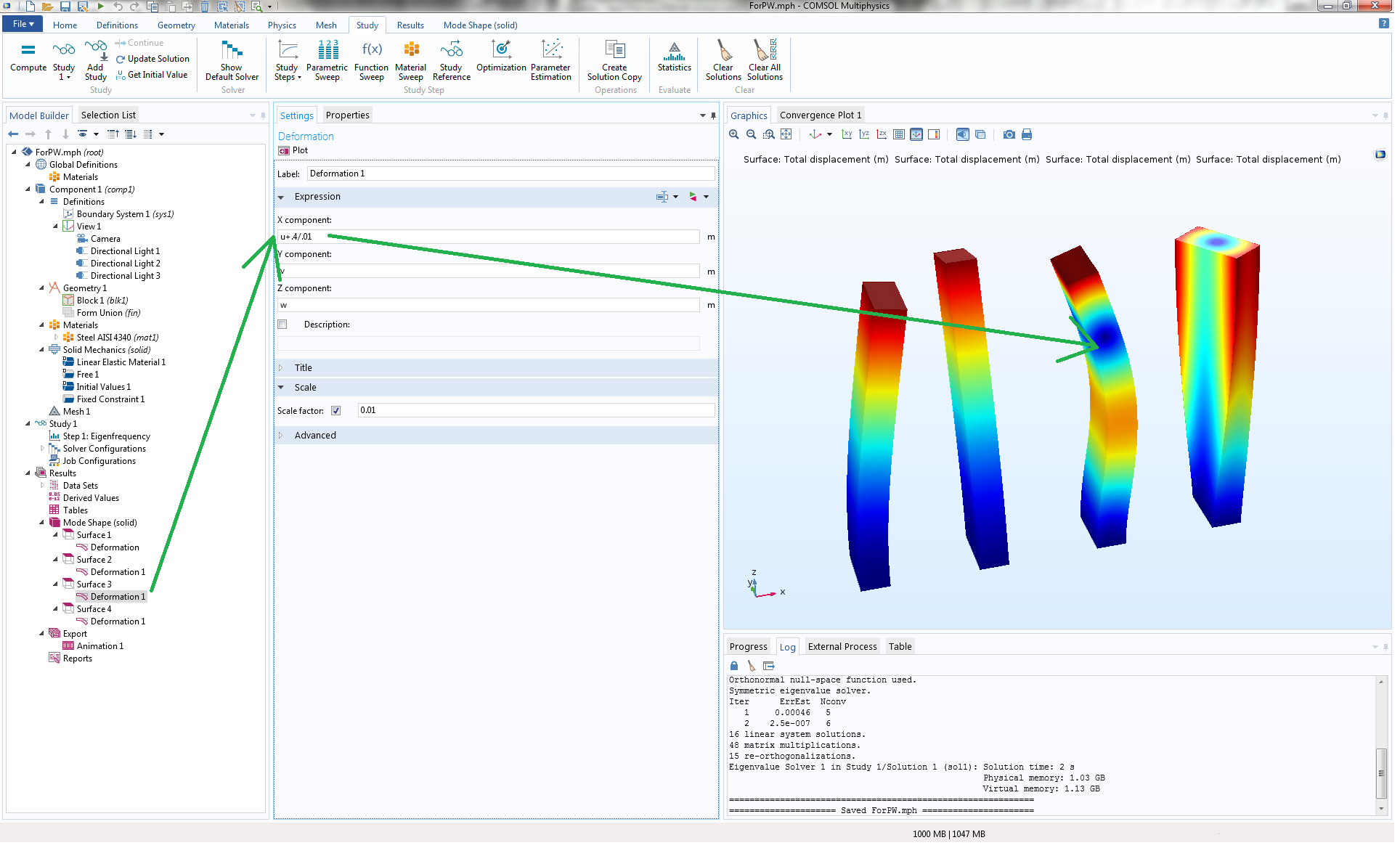

You can achieve that by using Deformation nodes, as shown in the attached screenshot and model file.
Best regards,
Jeff
Hello Patrick, You can achieve that by using Deformation nodes, as shown in the attached screenshot and model file. Best regards, Jeff

Attachments:
