Wrapping a CAD Geometry
Application ID: 101131

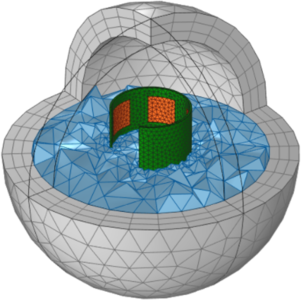

You can use the Moving Mesh or the Deformed Geometry interface to implement wrapping of a CAD part around one axis. This model demonstrates both how to implement this wrapping, as well as how to subsequently mesh the surrounding volume around the deformed part.
A more detailed description of this model can be found in the blog post "Wrapping and Warping Geometries for Analysis in COMSOL®".
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Grille des Spécifications and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
