Tubular Permanent Magnet Generator
Application ID: 20381

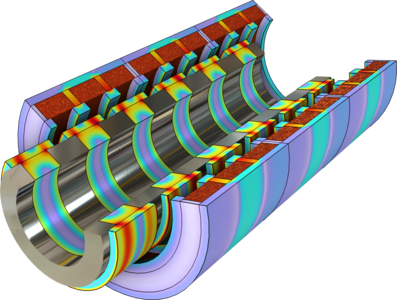

This tutorial shows how to model the tubular permanent magnet generator in 2D axisymmetry. The generator consists of a modular stationary stator and moving/oscillating slider. The stator is made of three-phase multiturn windings and an iron core. The slider is made of permanent magnets and iron spacers. The open circuit voltage in the three-phase stator windings due to the periodic motion of the slider is calculated.
The model is set up using the Magnetic Fields and Moving Mesh physics interfaces. The linear periodicity of the tubular generator is set up manually using the General Extrusion feature.
The PM generator model is featured and explained in much greater detail in the following blog post: "Modeling Linear Motors or Generators in COMSOL Multiphysics"
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Grille des Spécifications and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
