Surface-Trap-Induced Hysteresis in an InAs Nanowire FET — a Density-Gradient Analysis
Application ID: 97361

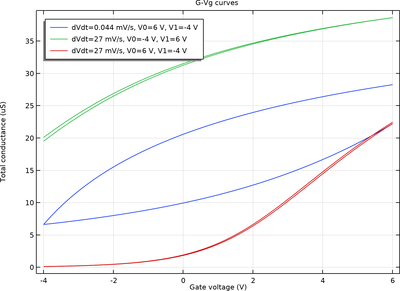

This tutorial analyzes the hysteresis of the conductance-gate-voltage (G-Vg) curves of an InAs nanowire FET, using the density-gradient theory to add the effect of quantum confinement to the conventional drift-diffusion formulation, without a large increase of computational costs. The hysteresis is caused by the dynamic charging effects of fast and slow semiconductor-oxide interface traps of continuous energy distributions and of both donor and acceptor types. The capture probability is modeled as thermally activated with a barrier height that varies with the trap energy level. The qualitative behavior and the order of magnitude of the computed G-Vg curves under various voltage ramping conditions agree well with simulation and experiment results found in the literature.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Grille des Spécifications and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
