Sonic Crystal
Application ID: 16925
Phononic and sonic crystals have generated rising scientific interest for very diverse technological applications. These crystals are made of periodic distributions of scatterers embedded in a matrix. Under certain conditions, acoustic band gaps can form. These are spectral bands where propagation of waves is forbidden. These periodic structures are also often referred to as metamaterials.

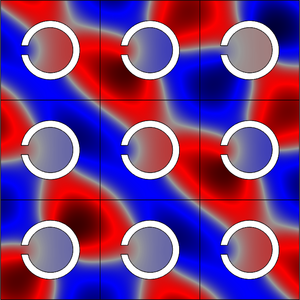

This model first analyzes a sonic crystal and determines its band structure. Secondly, the transmission loss through a finite sized crystal is analyzed and results are compared to the band structure.
The effects of thermoviscous boundary-layer losses are also studied here. Both the analysis of the unit cell as well as the finite array analysis include these effects. The results are compared to the classical lossless results.
Ref: D. P. Elford, L. Chalmers, F. V. Kusmartsev, and G. M. Swallowen, “Matryoshka locally resonant sonic crystal” J. Acoust. Soc. Am. 130, pp. 2746 (2011).
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Grille des Spécifications and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
