Small-Signal Analysis of an Inductor
Application ID: 2128
If an inductor's magnetic material is nonlinear, then the inductance depends on the current passing through it.

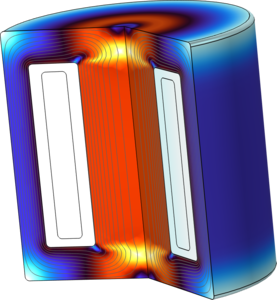

This model consists of an inductor with a nonlinear magnetic core, where the small-signal inductance is simulated as a function of current. The model also investigates how the small-signal inductance depends on the DC current.
