Single-Phase Induction Motor: TEAM Workshop Problem 30
Application ID: 41121
This single-phase induction motor model is used to compare with Testing Electromagnetic Analysis Method (TEAM) workshop problem 30.

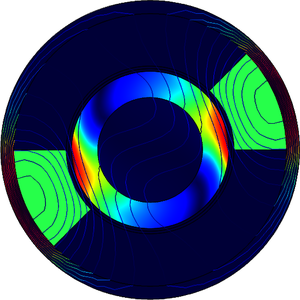

The Magnetic Fields physics interface is used to model the motor in the frequency domain at 60 Hz. The Velocity (Lorentz Term) feature is used to model the armature’s rotation. The homogenized multiturn coil feature is used to model the single-phase winding of the motor.
Solving the model generates values for the motor’s electromagnetic torque, induced voltage, and rotor losses at various rotor speeds. These computed results are then compared to the TEAM problem’s analytical results.
