Rotating Helix Geometry
Application ID: 19261

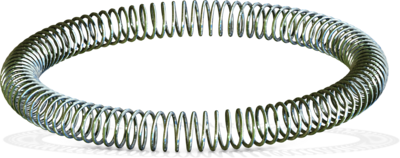

This model demonstrates how to create a rotated helix geometry, i.e., a helix that is winded to form a torus. This is done sweeping a circle along a parametric curve. The radius of the torus and the radius of the coil are given as parameters as well as the number of windings of the coil.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Grille des Spécifications and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
