Permanent Magnet Motor with Campbell Diagram
Application ID: 118791
The noise emitted from an electrical machine can have many sources. In this example, acoustic noise from vibrations created by magnetic force variation is studied. Such noise is often audible at twice the excitation frequency but can also occur at higher frequencies or harmonics of the excitation frequency.

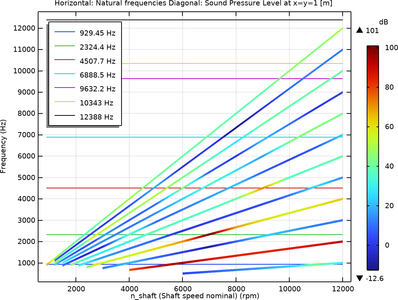

The model demonstrates how to couple Magnetic Machinery Time Periodic with Solid Mechanics and Acoustics to produce a Campbell diagram. The results give insight into which of the magnetic force harmonics creates the most prominent motor noise at various speeds. These results are also correlated with the natural frequencies of the motor structure.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Grille des Spécifications and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
