Homogenization of a Composite Beam
Application ID: 118651
Beam theories are well-developed for slender structures with homogeneous materials and isotropic cross-sections.
The traditional beam theories do no apply to beams made of different materials in the cross-section. Therefore, a homogenization-based numerical model is needed to compute equivalent stiffness matrices.

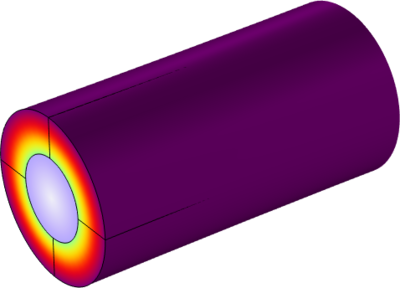

In this example, the homogenization of a circular cross-section composite beam made of two different materials is shown.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
