High Voltage Ferrite Core Transformer
Application ID: 101671

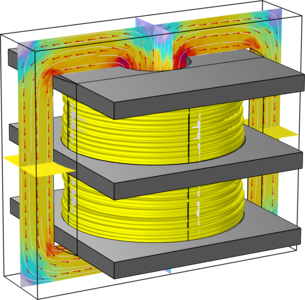

This transformer model demonstrates how to extract the magnetizing and leakage inductances, along with parasitic capacitances. In this case, due to very high turns ratio, the secondary parasitic capacitance has a dominant effect when referred to primary. In experimental measurements, the capacitive behavior dominates the inductive behavior when measurements are done from the primary side.
Frequency domain solution from low frequency up to 100 kHz, above the LC resonance is found either by a 2.5D axisymmetric approach, or from a full Electrical Circuit model where lumped parameters are extracted from multiple 3D simulations estimating separately different lumped parameters.
