Evaluating Singular Stress Fields
Application ID: 125151
A detailed description of these models can be found in our blog post “How Should I Evaluate Singular Stress Fields?”.
The models are:

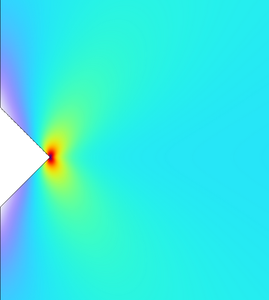

- notchedStrip.mph – Model for the initial studies of the stress field properties.
- singularityPower.mph – Small model solving the transcendental equation that give the exponent for the stress singularity for corners with different angles.
- stripInternalCorner.mph – FE Verification of singularity strength for different corner angles.
- materialTransition.mph – Shows the effect on stress from of a transition between two different materials.
- percentileMethod.mph – Shows how to perform an evaluation using the percentile method.
