A Cross-Bridge Kelvin Resistor Model for the Extraction of Specific Contact Resistivity
Application ID: 99621

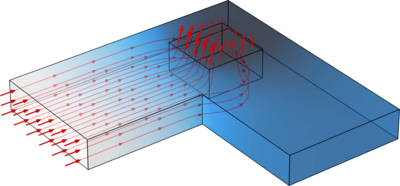

This benchmark example builds two models of a cross-bridge Kelvin resistor used for extracting the specific contact resistivity. The first model simulates the system in 3D, using the contact resistance feature built in the Semiconductor interface. The other model is a 2D approximation of the system developed in the reference paper, implemented using a boundary PDE math interface. The computed Kelvin contact resistance as a function of the contact window size and the diffusion tap width correlates well between the two models, and agrees well with the result shown in the reference paper.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Grille des Spécifications and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
