Comsol is not detecting the variables while a building a polygon geometry in a work plane

Posted 18 sept. 2015, 06:59 UTC−4 MEMS & Nanotechnology, MEMS & Piezoelectric Devices, Geometry Version 4.4, Version 5.1 1 Reply

Pradeep
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Dear comsol,

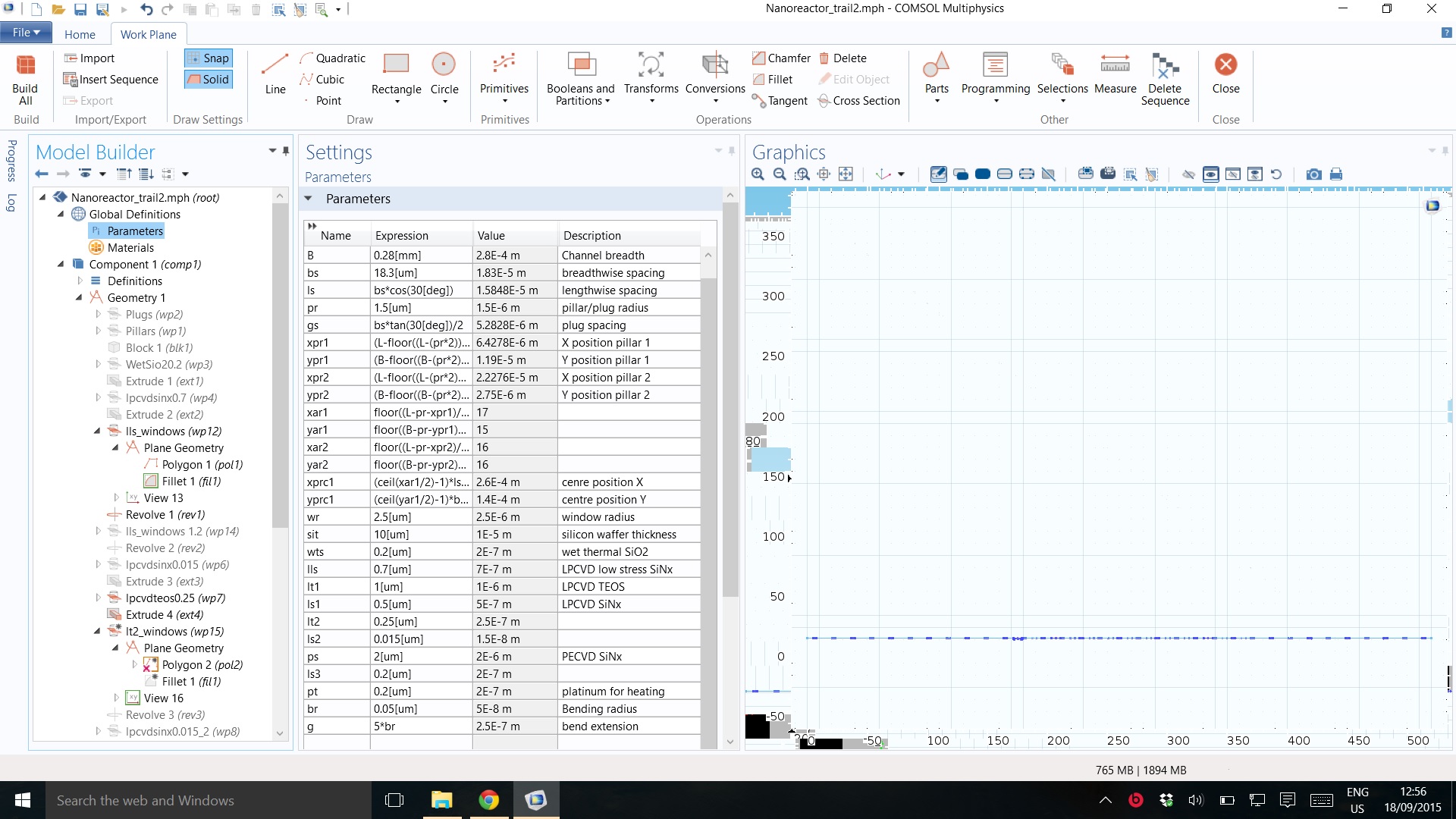

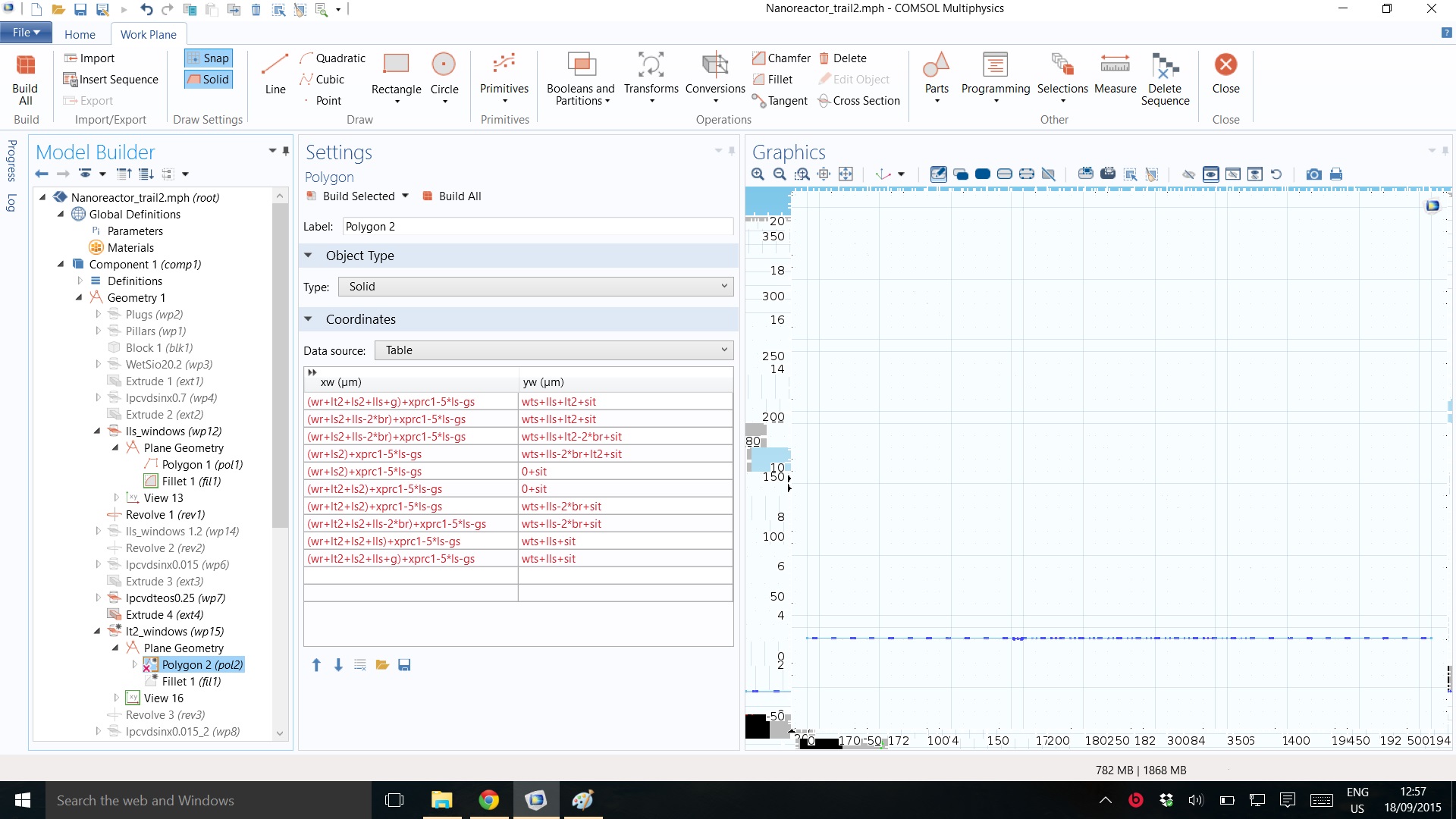

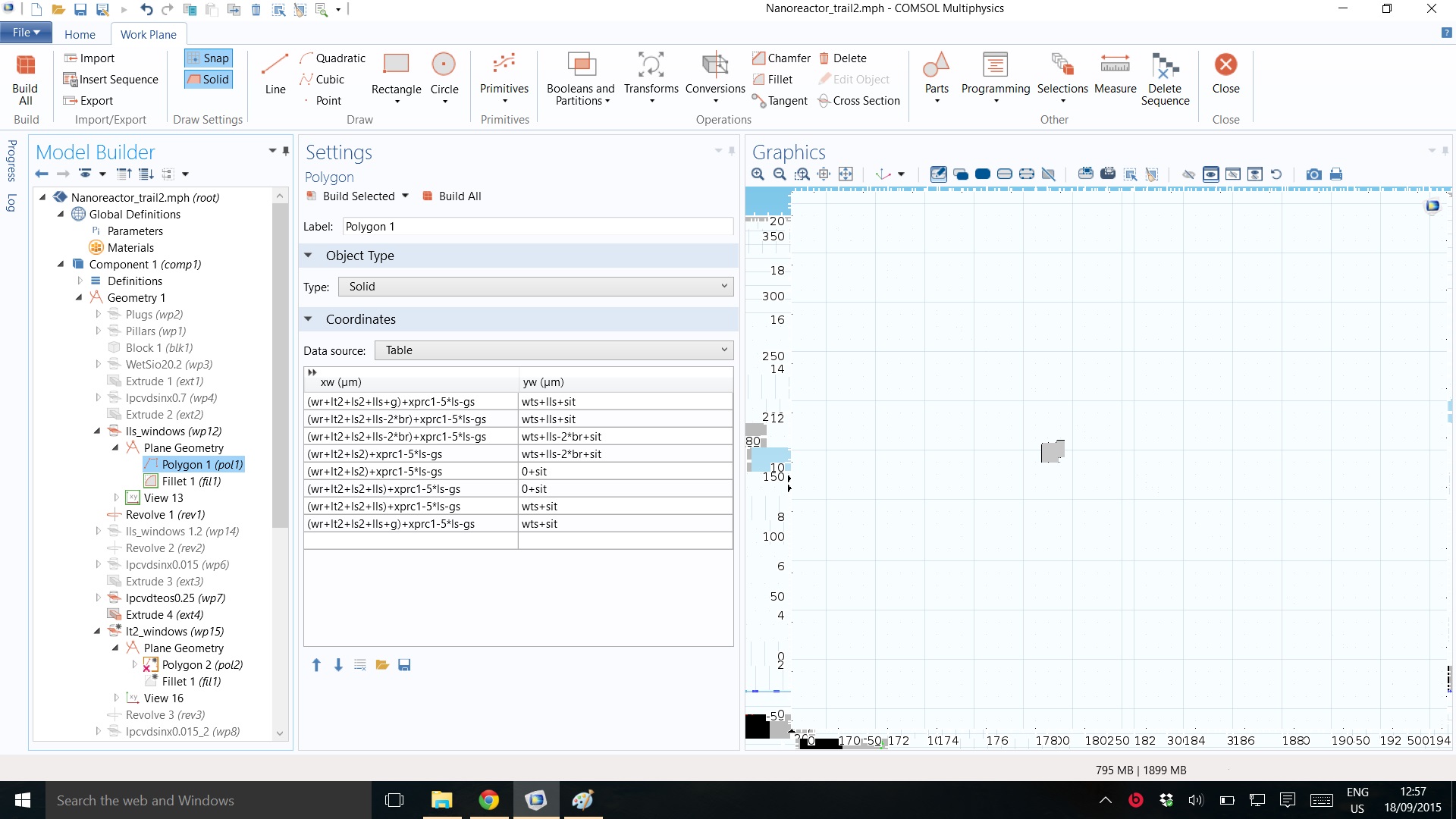

I specified all the required parameters under definitions. I builded many other structures using those parameters. Now i'm trying to build a polygon in a work plane (I previously a polygon using those parameters in another work plane). I don't have a clue why it is not working this time. for further understanding pls ref to the screenshots attached.

Thanks in advance

Regards, Pradeep
1 Reply Last Post 18 sept. 2015, 08:54 UTC−4
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 18 sept. 2015, 08:54 UTC−4

Pradeep,

I sometimes see this behavior too. Sometimes it helps to click into the Parameter table and back to the geometry definition. Sometimes I have to delete the parameter (not the whole list) and enter it again.

I hope we will see the option to define more than one parameter list in the near future. Just like we can define several variable lists.
This would greatly improve our options to parameterize models with regard to different model aspects and avoid scrolling up and down long parameter lists.

Cheers
Edgar

--
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Pradeep, I sometimes see this behavior too. Sometimes it helps to click into the Parameter table and back to the geometry definition. Sometimes I have to delete the parameter (not the whole list) and enter it again. I hope we will see the option to define more than one parameter list in the near future. Just like we can define several variable lists. This would greatly improve our options to parameterize models with regard to different model aspects and avoid scrolling up and down long parameter lists. Cheers Edgar -- Edgar J. Kaiser emPhys Physical Technology http://www.emphys.com
