rotated pattern of geometrical entities

Please login with a confirmed email address before reporting spam

Hello,
I am wondering if it is possible to make a rotated pattern of a geometrical entity (for example make N copies of an object, the nth copy being a rotated version of the original one by n*some_angle, around a defined axis)
This would be analogous to the Array operation which makes N copies linearly or in a rectangular pattern.
Thank you
Daniel

4 Replies Last Post 12 août 2015, 06:52 UTC−4
Sven Friedel COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 11 août 2015, 04:49 UTC−4
Hi Daniel,

yes this is possible.

Sven
Hi Daniel, yes this is possible. Sven

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 11 août 2015, 05:12 UTC−4
Dear Sven,
Thank you! How can I do this?
Daniel
Dear Sven, Thank you! How can I do this? Daniel

Sven Friedel COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 11 août 2015, 05:23 UTC−4
Dear Daniel,

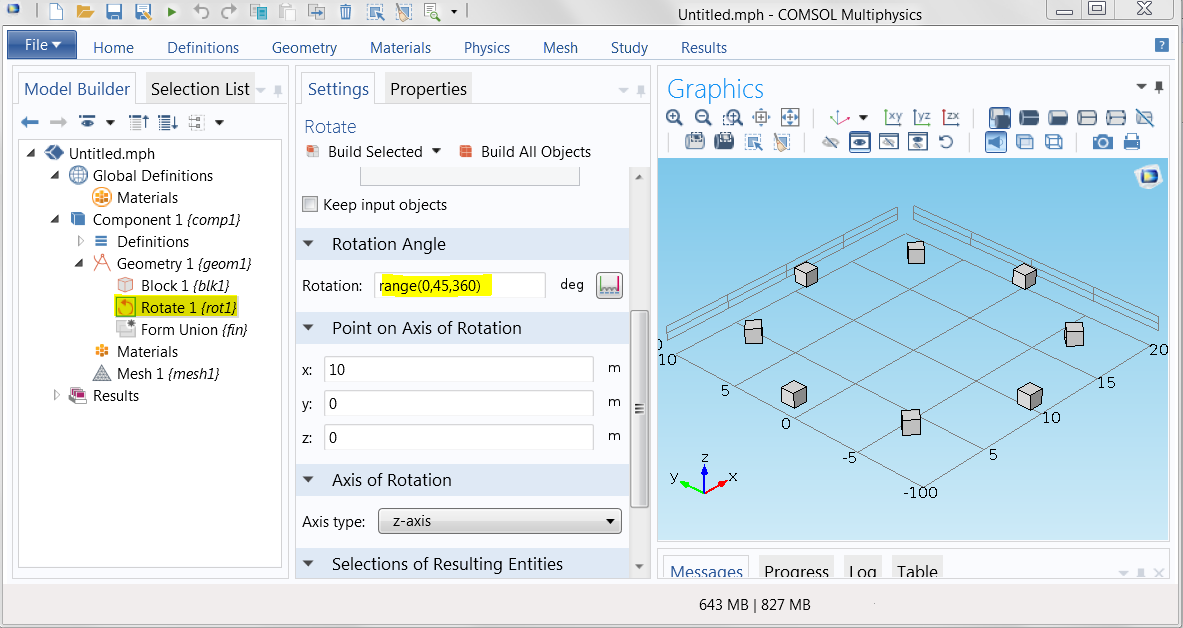

please see my attached file - and - in case you are not running COMSOL 5.1 yet - the screenshot.

Best regards,
Sven

Dear Daniel, please see my attached file - and - in case you are not running COMSOL 5.1 yet - the screenshot. Best regards, Sven


Please login with a confirmed email address before reporting spam

Posted: 9 years ago 12 août 2015, 06:52 UTC−4
Uhhh, how can I have missed this so far?
Thanks a lot!
Daniel
Uhhh, how can I have missed this so far? Thanks a lot! Daniel
