mpheval() along Boundaries

Please login with a confirmed email address before reporting spam

I am using the Magnetic Fields no Current module and am trying to extract the H field along a boundary between material A and material B using mpheval. What I am finding is that Comsol is returning an average H based on the node assuming material A and B.

Is there a way that I can specify that I want the values for material A along that boundary. The only way I have been able to get close to this so far is to use mpheval to return the values for domain A then programmatically in MATLAB identify what elements are long that boundary.

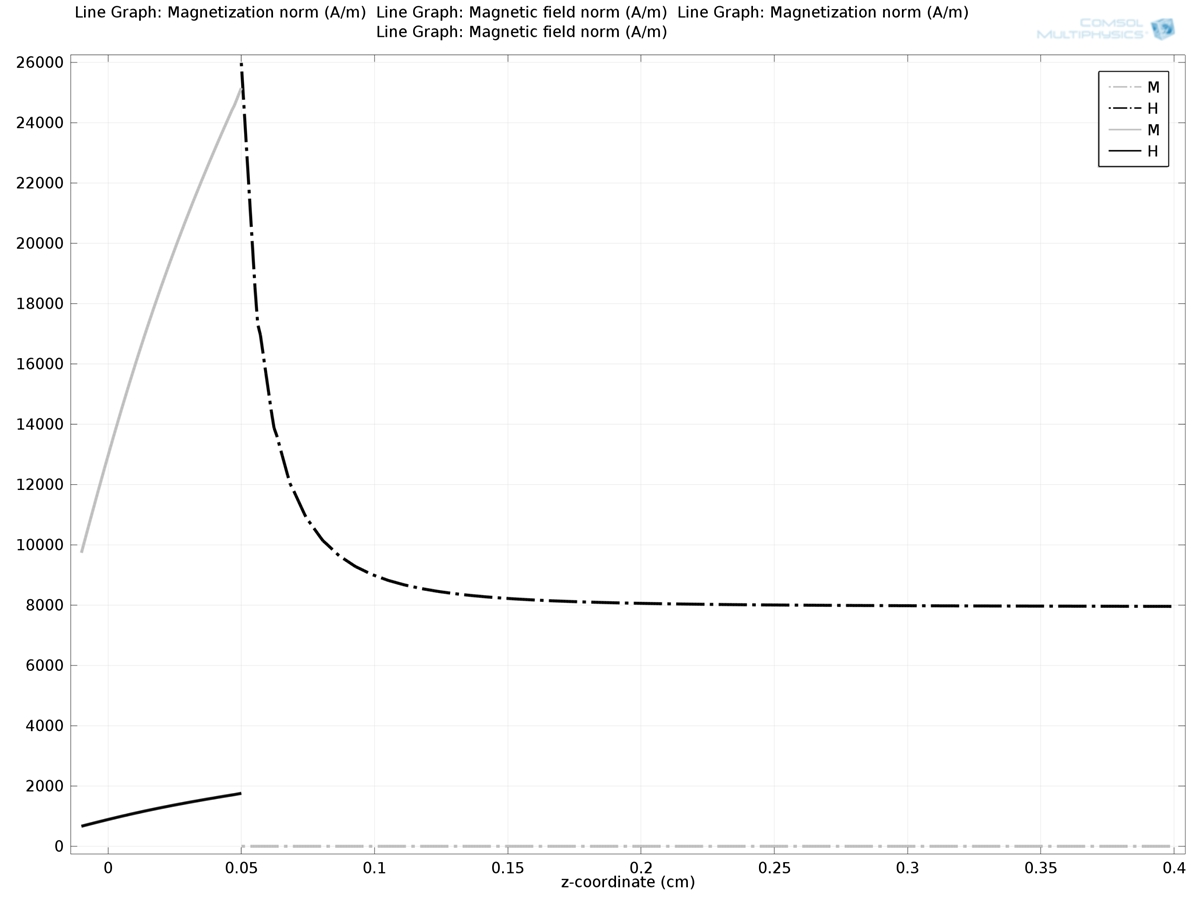

I attached a image that might help visual this issue. The boundary between material A and B occurs at the discontinuity in the plot. The function call I am using is:

data.MagM = mpheval(model, {'mfnc.normM'}, 'edim', 'boundary', 'selection', 17, 'Dataonly', 'on');

Thanks in advance for any help,

Brandon




1 Reply Last Post 27 mai 2015, 16:24 UTC−4

Please login with a confirmed email address before reporting spam

Posted: 9 years ago 27 mai 2015, 16:24 UTC−4
The up() down() commands were able to solve this problem within COMSOL. See the user manual Table 5-8 Built-In Operators (V4.4) for more information.

Brandon
The up() down() commands were able to solve this problem within COMSOL. See the user manual Table 5-8 Built-In Operators (V4.4) for more information. Brandon
