graphical data representation

Posted 18 nov. 2013, 15:43 UTC−5 Version 4.3a 2 Replies

Pawel Wasiak
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Is there a possibility in 4.3a version, to get some kind of section through, for example magnetic field images in selected time steps?

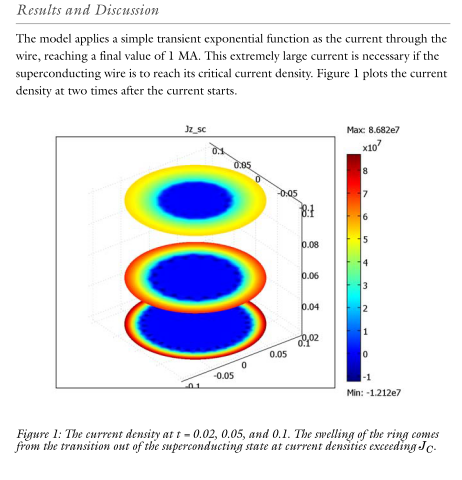

I mean, like it was made in the picture in attachment.

Attachments:

2 Replies Last Post 19 nov. 2013, 15:53 UTC−5
Bettina Schieche COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 19 nov. 2013, 08:09 UTC−5
Dear Mr. Wasiak,

you can create the additional data set "Parametric Extrusion 2D" to be found by right-clicking "Results > Data Sets" under "More Data Sets". Here you can extrude a 2D data set in the time domain and specify, which points in time you want to choose. Afterwards, the data set can be plotted in a 3D Plot Group.

Best regards

Bettina Schieche
Dear Mr. Wasiak, you can create the additional data set "Parametric Extrusion 2D" to be found by right-clicking "Results > Data Sets" under "More Data Sets". Here you can extrude a 2D data set in the time domain and specify, which points in time you want to choose. Afterwards, the data set can be plotted in a 3D Plot Group. Best regards Bettina Schieche
Pawel Wasiak
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 19 nov. 2013, 15:53 UTC−5
Thank you Ms Schieche,

that helps me a lot.
Thank you Ms Schieche, that helps me a lot.
