meshing curved surface

Posted 16 oct. 2013, 11:17 UTC−4 Mesh Version 4.3b 3 Replies

Mani
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I have a curved surfaces in one of model. The radious is 4mm and full length of the model is 1.5..I have problem in meshing.. Can someone suggest what could be done?
3 Replies Last Post 21 oct. 2013, 04:50 UTC−4
Lasse Murtomäki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 17 oct. 2013, 04:41 UTC−4
What problem you have? Is the model 2D or 3D? Please tell more, I have been meshing curved 3D objects.

Lasse
What problem you have? Is the model 2D or 3D? Please tell more, I have been meshing curved 3D objects. Lasse
Mani
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 17 oct. 2013, 07:08 UTC−4
Dear Lasse,

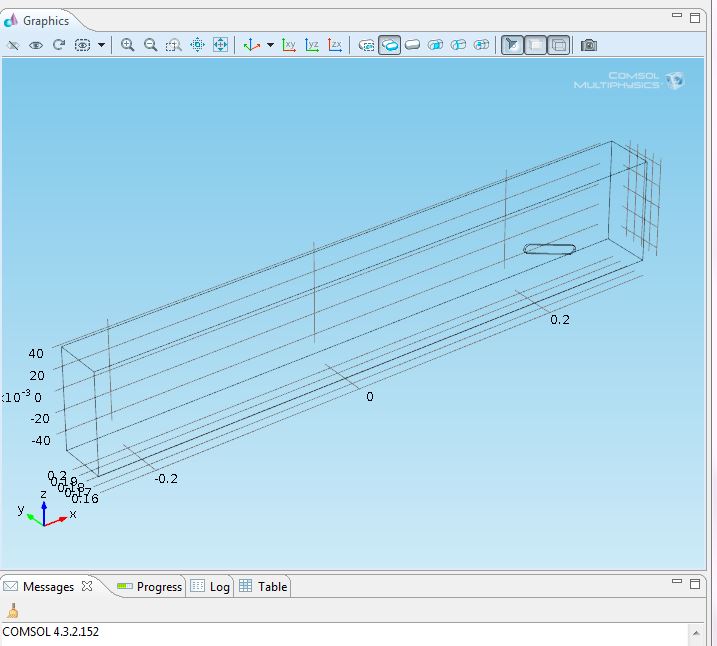

It is a 3D model. I could not send the model because it is very large. I am sending a snap shot of the model.
Hope it helps to understand the model..
Looking forward to hearing from you.

Best regards,

Nada
Dear Lasse, It is a 3D model. I could not send the model because it is very large. I am sending a snap shot of the model. Hope it helps to understand the model.. Looking forward to hearing from you. Best regards, Nada
Lasse Murtomäki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 21 oct. 2013, 04:50 UTC−4

Dear Lasse,
It is a 3D model. I could not send the model because it is very large. I am sending a snap shot of the model.
Hope it helps to understand the model..
Looking forward to hearing from you.

Best regards,

Nada


You still do not tell what the problem is :) I would mesh first the small rounded object with very fine mesh and then the rest with a large element growth rate.

Lasse
[QUOTE] Dear Lasse, It is a 3D model. I could not send the model because it is very large. I am sending a snap shot of the model. Hope it helps to understand the model.. Looking forward to hearing from you. Best regards, Nada [/QUOTE] You still do not tell what the problem is :) I would mesh first the small rounded object with very fine mesh and then the rest with a large element growth rate. Lasse
