how to plot graph b/w preeure vs displacement

Posted 3 avr. 2013, 02:25 UTC−4 Version 4.2, Version 4.3b 1 Reply

RAJKUMAR S
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

i need procedure how to plot grap for pressure sensor and how to observe pressure and displacement value......

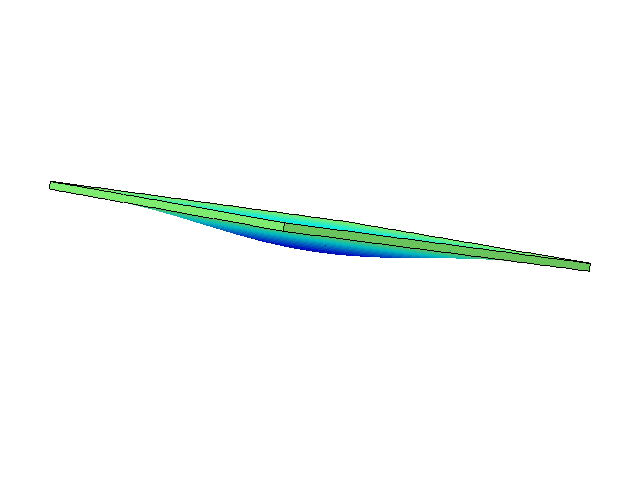

Attachments:

1 Reply Last Post 3 avr. 2013, 10:57 UTC−4
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 3 avr. 2013, 10:57 UTC−4
Hi

eithjer define a point or an boundary, and get the average value (average operator or integration operator over a point, or over a Data Set "point") and then use the Results Derived values to get a table with pressure (as you probably changed it qwith a parametric sweep) and the average displacement. (or with the max displacement operator)

This is also described in some of the videos on the main site

--
Good luck
Ivar
Hi eithjer define a point or an boundary, and get the average value (average operator or integration operator over a point, or over a Data Set "point") and then use the Results Derived values to get a table with pressure (as you probably changed it qwith a parametric sweep) and the average displacement. (or with the max displacement operator) This is also described in some of the videos on the main site -- Good luck Ivar
