Fillet with a larger radius when neighboring points exist.
Posted 20 mai 2024, 03:15 UTC−4 Geometry Version 5.6 0 Replies
Please login with a confirmed email address before reporting spam

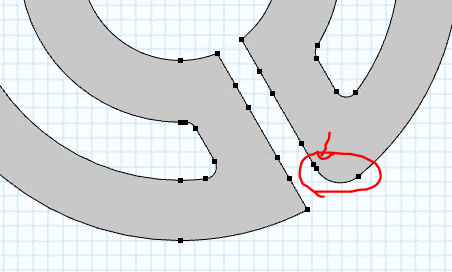

Hi, I was trying to create a geometry with two rings connected by a split path and an opening (see the attached image). I used the Booleans difference method to achieve this shape. However, I encountered an issue when trying to apply a fillet at the opening. The vertices are limiting the maximum radius of the fillet. Does anyone have suggestions on how to remove the extra points or a better way to create the desired shape? Thanks!
Hello Wei Hsu
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
