How to visualize the applied load
Posted 19 juin 2023, 13:03 UTC−4 Results & Visualization, Studies & Solvers, Physics Interfaces Version 6.1 0 Replies
Please login with a confirmed email address before reporting spam
The below post is related to an archived discussion

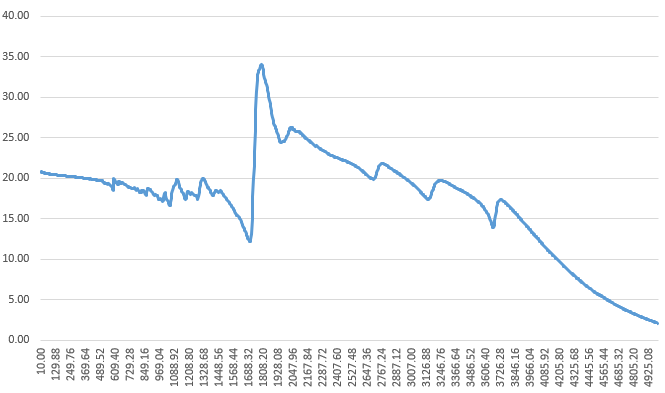

[start here] Hello, I followed the steps as described in the previous post. But I would like to know how i can verify that the load applied to the point changed with frequency or not? Because after applying the function in my boundary load, when i hover the mouse on it it showed the first load value but i would like to make sure that the load value changed with frequency. Is there any way to verify it or how can i plot the applied load in result node? Any help is much appreciated. I attached an image of the load that i would like to apply. x axis is frequency and y axis is load/force in Newtons.
Thanks.
Attachments:
Hello Yaser Arafath Gulam Dhasthagir
