Graphing mass flow

Posted 13 juin 2023, 15:38 UTC−4 Porous Media Flow, Results & Visualization, User Interface 0 Replies

Antonio Romo
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

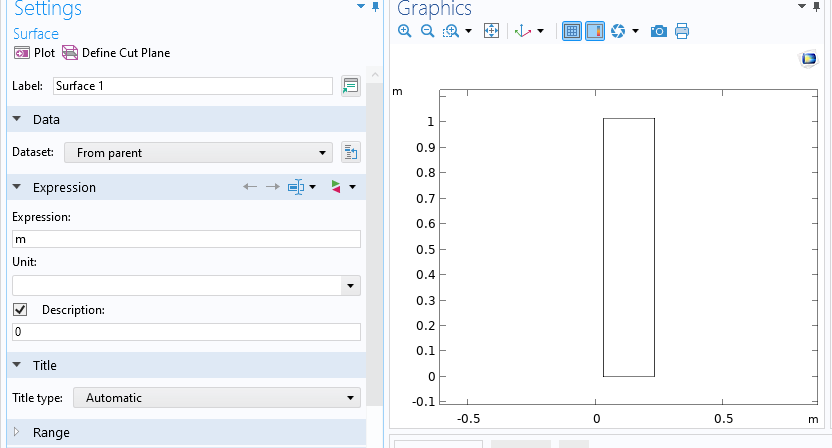

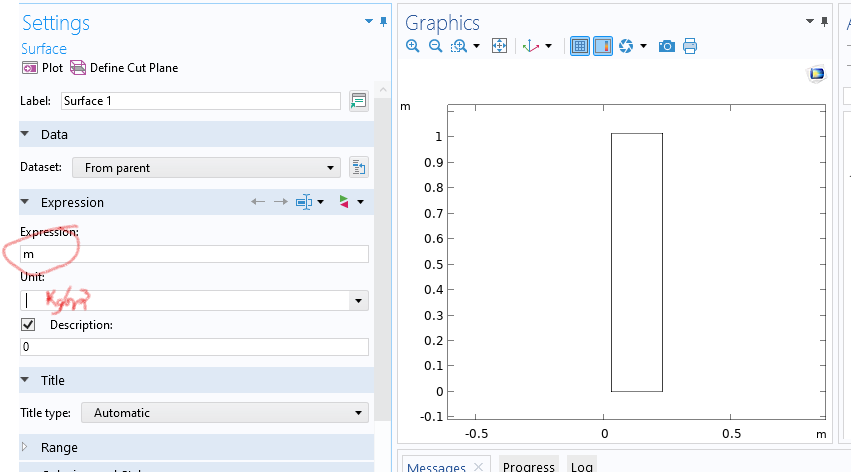

Hello, i'm simulating a (TDS) stationary simulation, I already graph the concentration (mol/m3) but I also want to grahp the water flow in my simulation. But I don't know how to plot this variable (kg/m3). I add a link to a photo to further explain. photo: https://drive.google.com/file/d/1w2bmFl3TYHwtyXIH7Jatt4JCZ5mYrGnj/view?usp=sharing

0 Replies Last Post 13 juin 2023, 15:38 UTC−4
COMSOL Moderator

Hello Antonio Romo

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
