Part does not take stress.

Posted 1 févr. 2023, 15:10 UTC−5 Structural Mechanics Version 6.1 2 Replies

Y Ko
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello

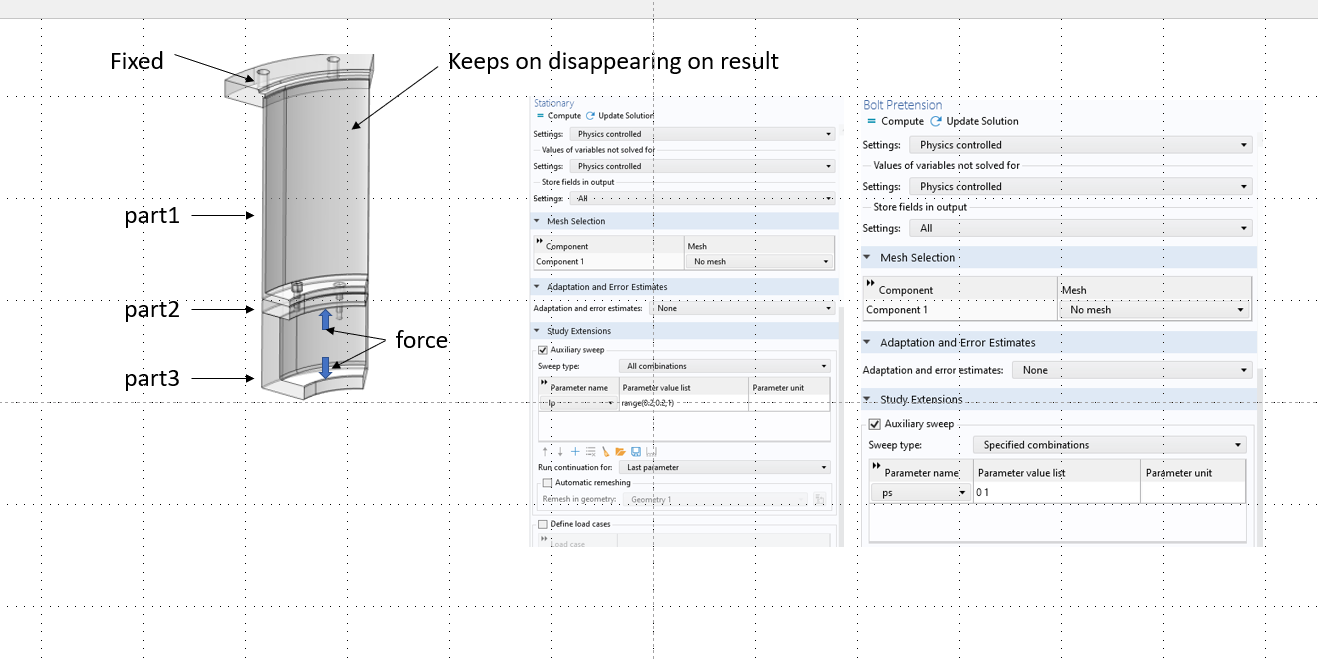

Part 1 does not show on my result. the only stress I can see is from bolts and bolt contact area. My expectation was to see stress from part 1 as well as part 3.

I have no clue about why I don't see any stress from part 1 and 3. Would anyone please help me with this?

Thank you

2 Replies Last Post 9 févr. 2023, 18:10 UTC−5
Henrik Sönnerlind COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 2 years ago 2 févr. 2023, 02:53 UTC−5

The first thing to look for when something seems to be missing is if you have some unwanted hidings in a View node. A fast way of finding all such occurrences:

Ctrl-F and search for 'hide'

-------------------
Henrik Sönnerlind
COMSOL
The first thing to look for when something seems to be missing is if you have some unwanted hidings in a View node. A fast way of finding all such occurrences: Ctrl-F and search for 'hide'
Y Ko
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 2 years ago 9 févr. 2023, 18:10 UTC−5

Thank you so much. I realised I did not include the domain in my solid mechanics setting.

Thank you so much. I realised I did not include the domain in my solid mechanics setting.
