Shell element/physics for large deformation cases

Posted 11 janv. 2023, 03:12 UTC−5 Structural Mechanics Version 6.1 4 Replies

Panson Poon
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Can we get reliable and accurate results from using shell in cases involving large deformation? Consider a case using shell to model a thin plate. If field variable w (displacement in z) is equal or even larger than the thickness of the shell, i.e., the plate bends considerably, can we get reliable and accurate results?

Thank you.

4 Replies Last Post 17 janv. 2023, 01:25 UTC−5
Henrik Sönnerlind COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 2 years ago 11 janv. 2023, 07:30 UTC−5

Yes, the Shell interface supports very large deformations.

-------------------
Henrik Sönnerlind
COMSOL
Yes, the Shell interface supports very large deformations.
Panson Poon
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 2 years ago 12 janv. 2023, 00:03 UTC−5
Updated: 2 years ago 12 janv. 2023, 00:03 UTC−5

Thank you for your reply.

I have a model which has no problem in convergence for using solid interface. However, the shell interface does not converge even for a lower load condition.

I have tried to use Constant Netwon in the nonlinear solver. It doesn't make any difference compared to the default setting. Both non-structured and structured mesh encounter the same issue.

Is there any specific setting in solver needed to address the problem? Or my shell interface has mistakes?

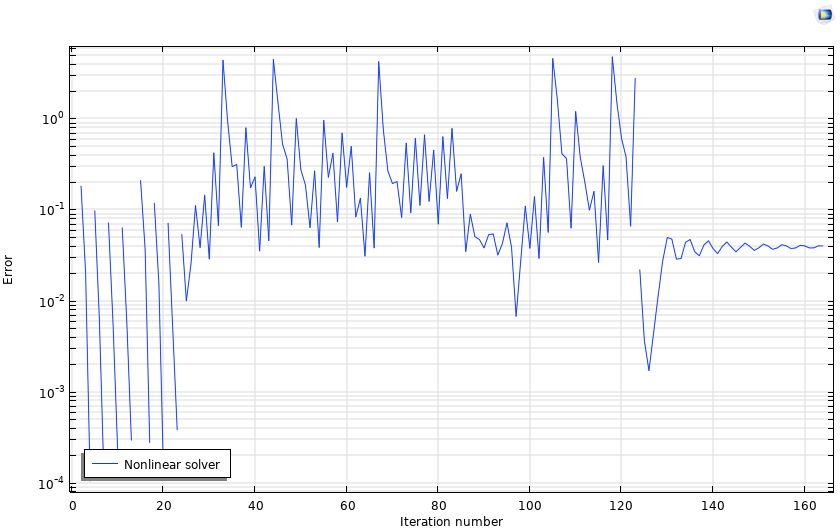

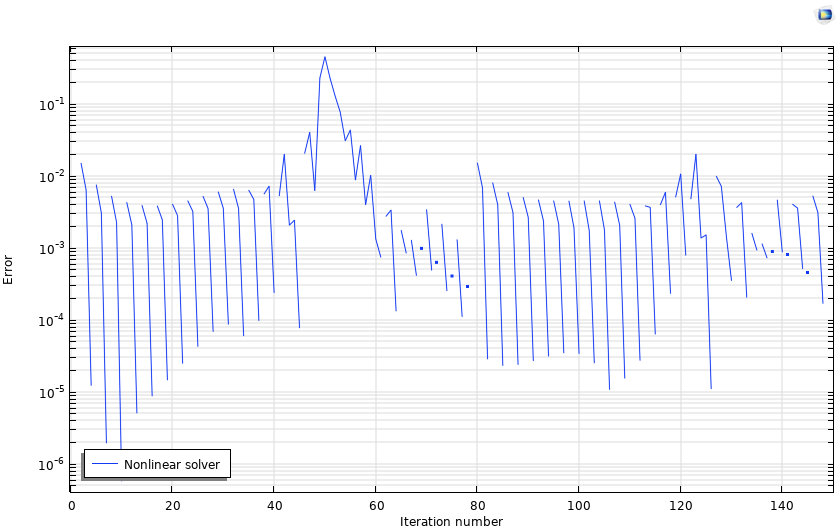

Convergence plot for solid and shell are attached for reference. The COMSOL file is zipped.

Thank you for your reply. I have a model which has no problem in convergence for using solid interface. However, the shell interface does not converge even for a lower load condition. I have tried to use Constant Netwon in the nonlinear solver. It doesn't make any difference compared to the default setting. Both non-structured and structured mesh encounter the same issue. Is there any specific setting in solver needed to address the problem? Or my shell interface has mistakes? Convergence plot for solid and shell are attached for reference. The COMSOL file is zipped.
Henrik Sönnerlind COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 2 years ago 16 janv. 2023, 10:15 UTC−5
Updated: 2 years ago 16 janv. 2023, 10:42 UTC−5

I think you would to contact support to get help with this. But it is probably related to snap-through phenomena, where the solid model may happen to capture the second (postbuckling) branch, even though the solution is force controlled.

-------------------
Henrik Sönnerlind
COMSOL
I think you would to contact support to get help with this. But it is probably related to snap-through phenomena, where the solid model may happen to capture the second (postbuckling) branch, even though the solution is force controlled.
Panson Poon
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 2 years ago 17 janv. 2023, 01:25 UTC−5

Thank you Henrik.

I will submit the case to support center.

Thank you Henrik. I will submit the case to support center.
