CAD Import with layers
Posted 22 nov. 2021, 06:40 UTC−5 CAD Import & LiveLink™ Products for CAD Version 5.6 0 Replies
Please login with a confirmed email address before reporting spam
Hello,

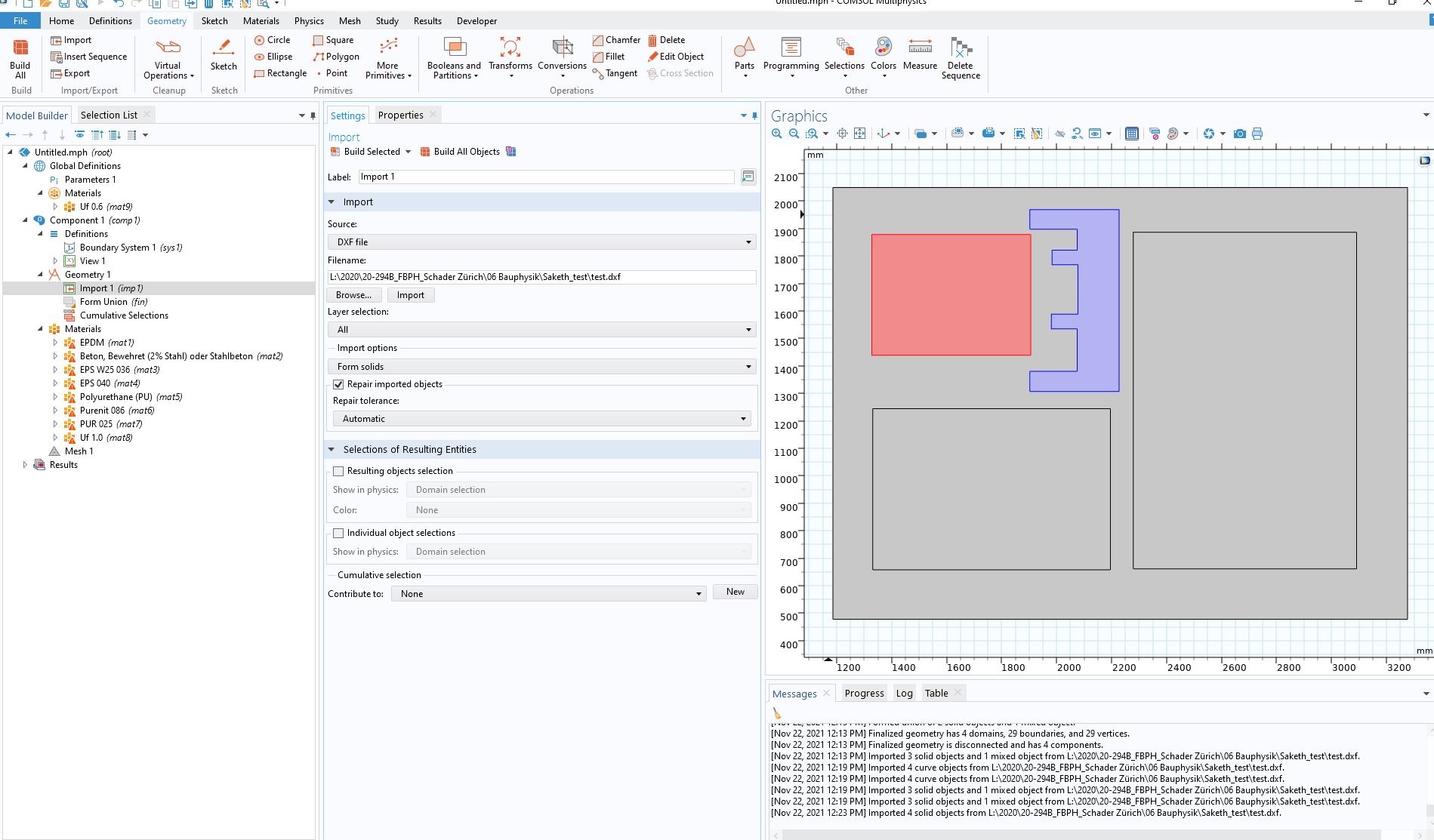

I am trying to import CAD file in dxf format with some layers defined in it. When I import the file, the "Object selections" panel which lists the layers do not show up. It is very important for me to have this selection available as I have to assign materials for simulation.
How do I make that "Object selections" panel visible?
I am attaching a sample geometry file that I am using to test this functionality.
Thanks, Saketh
