cooling heat source by air cooling
Posted 3 nov. 2021, 04:25 UTC−4 Fluid & Heat Version 5.6 2 Replies
Please login with a confirmed email address before reporting spam

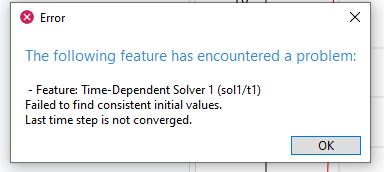

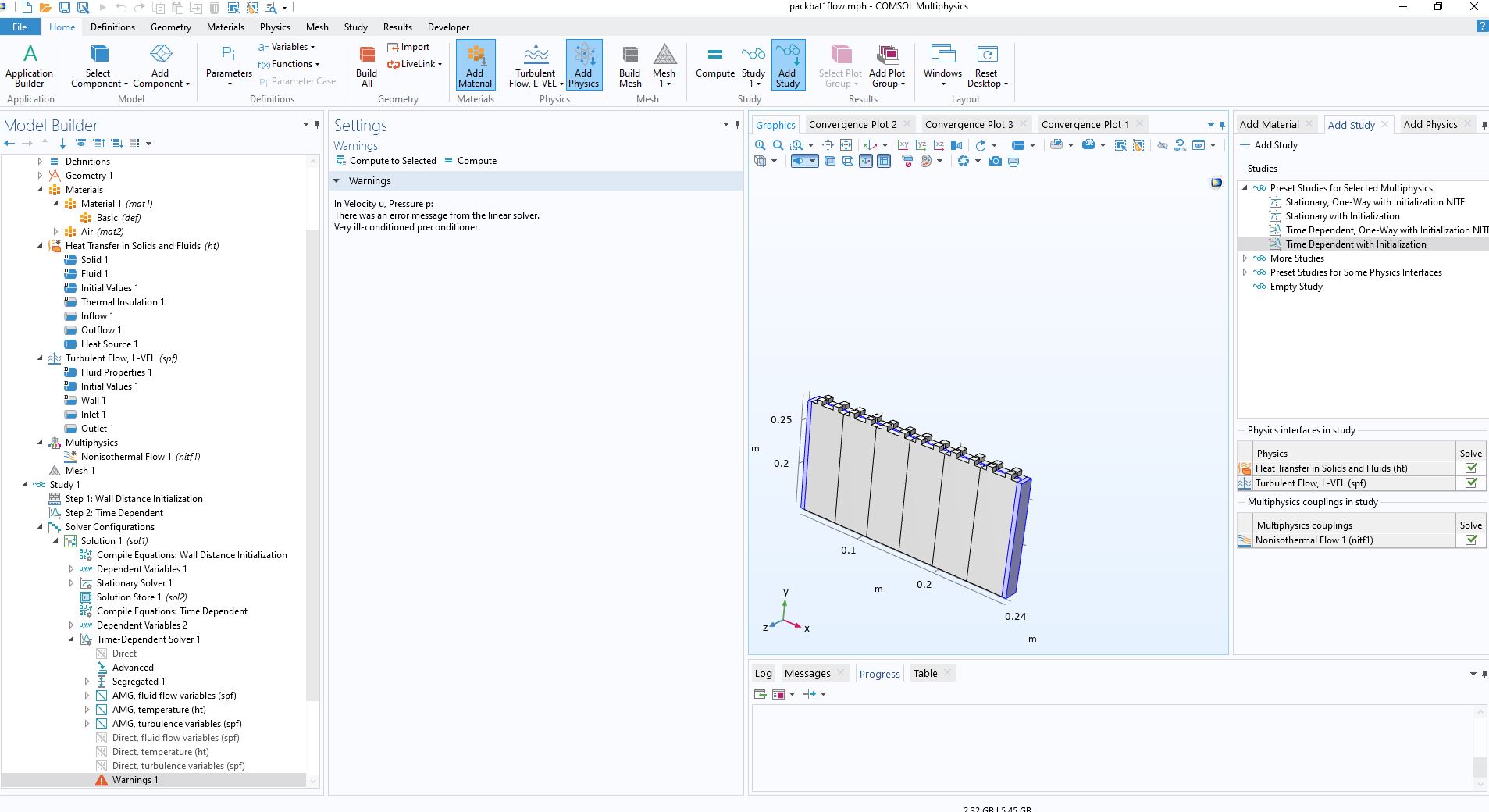

hello help me pls i want to simulation cooling heat source by air cooling i draw the geometry and setting boundary is pictured but it error . i don't know how it solve it
Attachments:
Please login with a confirmed email address before reporting spam
This two picture is not enough for others to know which steps are wrong. But I guess, from your pic, your parameters's setting may have some mistakes. you can re check your data and see where is wrong.
-------------------I'm the loser student who really want a PHD placement.
Please login with a confirmed email address before reporting spam
In addition to Yuyang's comment, you may also try:
1) change the fluid flow module to laminar and see if it works.
2) Use a very small value for the inlet flow and see if it works. You may use a ramp inlet, U_inlet*rm1(t), If the problem is not affected.
3) Change the solver from "Segregated" to "Fully coupled". Also make sure the Jacobian update is "On every iteration" not "Minimal".
4) Play with meshes. Sometimes, using very fine meshes near the singular points cause the solver fail to converge.
If you still get the error message, there should be something wrong with the model implementation or boundary conditions.
Amin
