Metasurface transmission phase plot

Posted 15 août 2021, 02:59 UTC−4 RF & Microwave Engineering, Wave Optics, Results & Visualization Version 5.5 0 Replies

Manish Kala
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

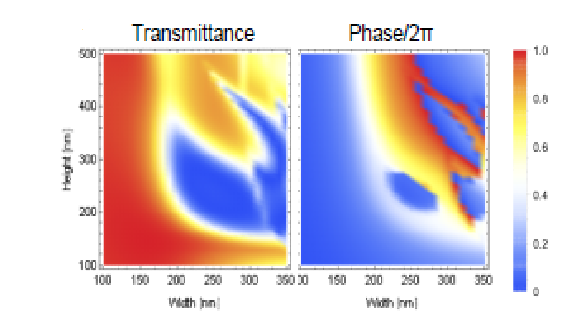

I wanted to plot transmission phase in electromagnetic frequency domain as shown in figure. How to plot height vs width with phase plot on 2D plot. How to plot two parameteric sweep on 2D.

Attachments:

0 Replies Last Post 15 août 2021, 02:59 UTC−4
COMSOL Moderator

Hello Manish Kala

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
