Boundary outflow conditions
Posted 3 janv. 2021, 01:34 UTC−5 Porous Media Flow Version 5.6 0 Replies
Please login with a confirmed email address before reporting spam
Hello,

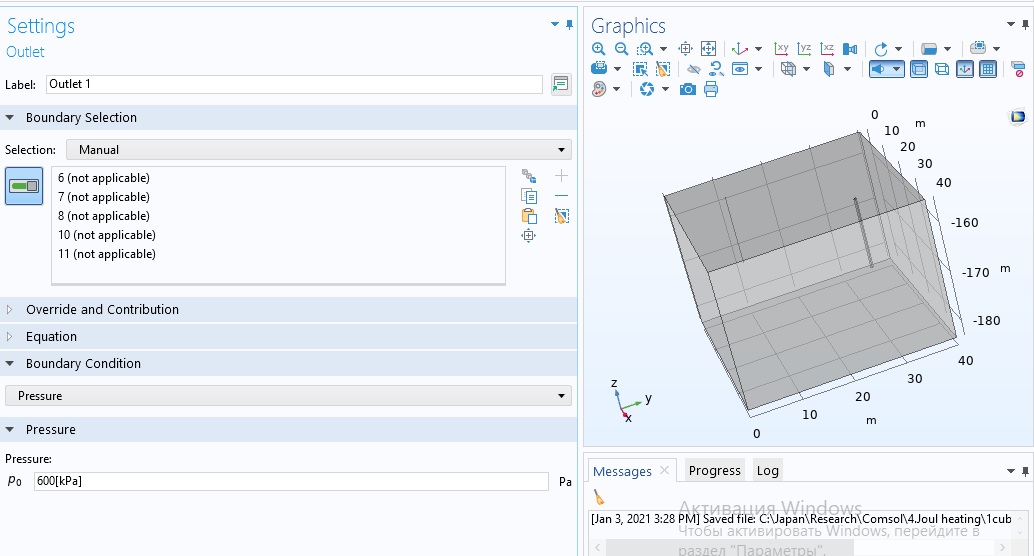

I am doing 3D simulation of filtration in porous media, I use 1 block model, material is Sands saturated by water. Filtration fluid is water, I have 1 injection well and 1 production well. For the injection wells I set the Line Mass Source condition, for the production well, I am trying to do outlet boundary condition, but it's written "not applicable" and I don't understand why. I saw video tutorials for the Geothermal Doublet, I tried to set as it was shown on the video, however now they use subsurface flow ->boundary condition "well". I am wondering how not using subsurface flow module I can set outflow boundary conditions for my production well? Thank you!
Attachments:
Hello Ekaterina Ulanova
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
