How to cut the boundary with the geometry imported by interpolation function

Posted 20 juil. 2020, 22:13 UTC−4 Parameters, Variables, & Functions Version 5.4 1 Reply

晓文 孙
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi, everyone

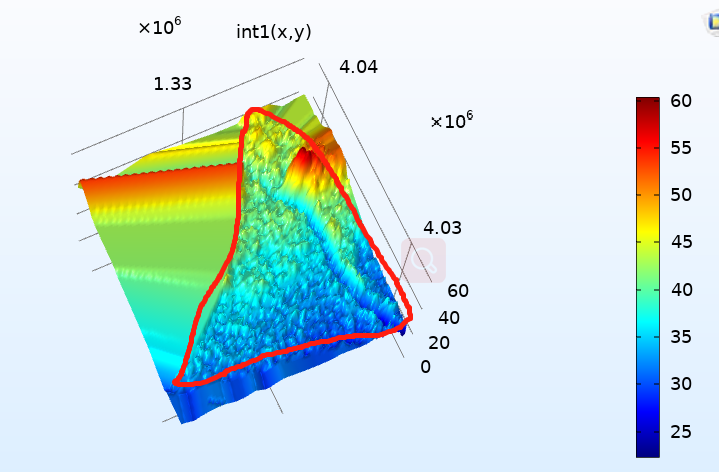

I want to import the irregular geometry model to COMSOL and I have imported the text file, the function diagram is rectangular but the text file I imported just have some coordinates of the rectangular. When I created a parametric surface, it also was a rectangle, I just want to display the coordinate image that I typed in( circled in red ), how do I crop the resulting parametric surface?

Best regards Xiaowen

1 Reply Last Post 21 juil. 2020, 09:33 UTC−4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 21 juil. 2020, 09:33 UTC−4

Hello Xiaowen,

You can create a prism that intersects the parametric surface to trim it.

To create the prism, you can draw a parametric curve in a workplane, and then extrude that shape into a 3D prism.

Best,

Jeff

-------------------
Jeff Hiller
Hello Xiaowen, You can create a prism that intersects the parametric surface to trim it. To create the prism, you can draw a parametric curve in a workplane, and then extrude that shape into a 3D prism. Best, Jeff
