Hello Tom,
Have you checked this knowledge base entry already? https://www.comsol.com/support/knowledgebase/952
It has many useful tips.
Hello Tom,
Have you checked this knowledge base entry already? https://www.comsol.com/support/knowledgebase/952
It has many useful tips.
Please login with a confirmed email address before reporting spam
Posted:
4 years ago
9 juil. 2020, 08:37 UTC−4
Hi Alexis,
Yes I did check that. The problem with the stationary solver doesn't change with mesh refinement so I don't think its that. And as I said the same mesh will give me a sensible answer using the time dependent solver (right from the first time step!). I have no reactions in the domain, only at the boundaries. The concentration is dropping negative only adjacent to straight boundaries of my domain, and look fine next to the curved boundaries. (domain is rounded rectangle)
Hi Alexis,
Yes I did check that. The problem with the stationary solver doesn't change with mesh refinement so I don't think its that. And as I said the same mesh will give me a sensible answer using the time dependent solver (right from the first time step!). I have no reactions in the domain, only at the boundaries. The concentration is dropping negative only adjacent to straight boundaries of my domain, and look fine next to the curved boundaries. (domain is rounded rectangle)
Please login with a confirmed email address before reporting spam
Posted:
4 years ago
9 juil. 2020, 08:44 UTC−4
Could you share a screenshot with a map of concentration and your mesh ?
Could you share a screenshot with a map of concentration and your mesh ?
Please login with a confirmed email address before reporting spam
Posted:
4 years ago
9 juil. 2020, 08:58 UTC−4

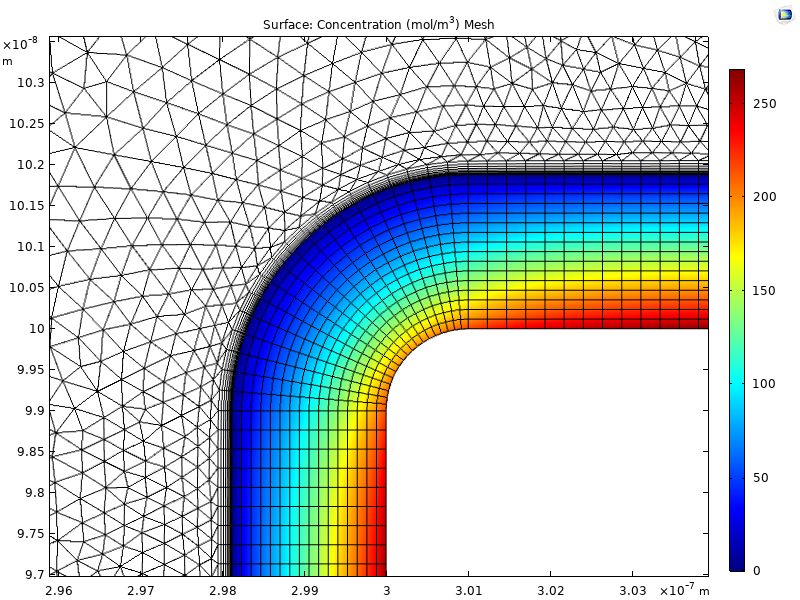

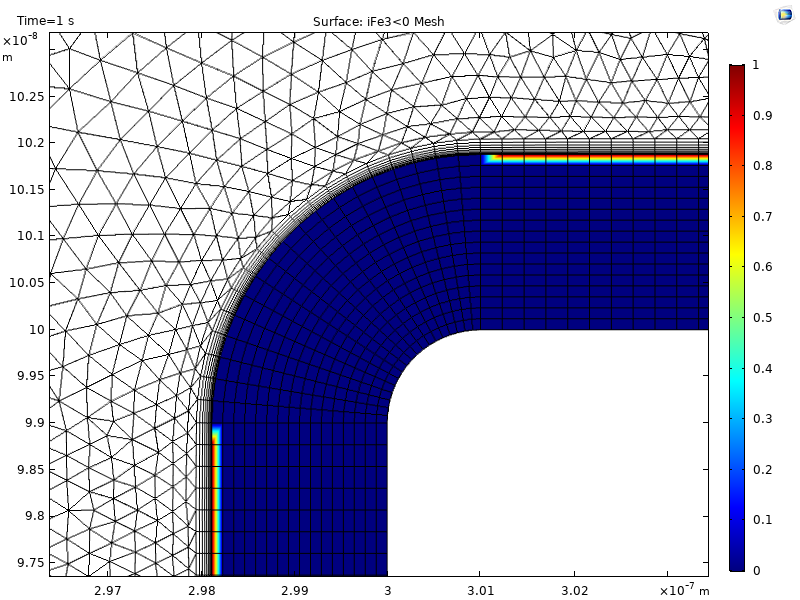

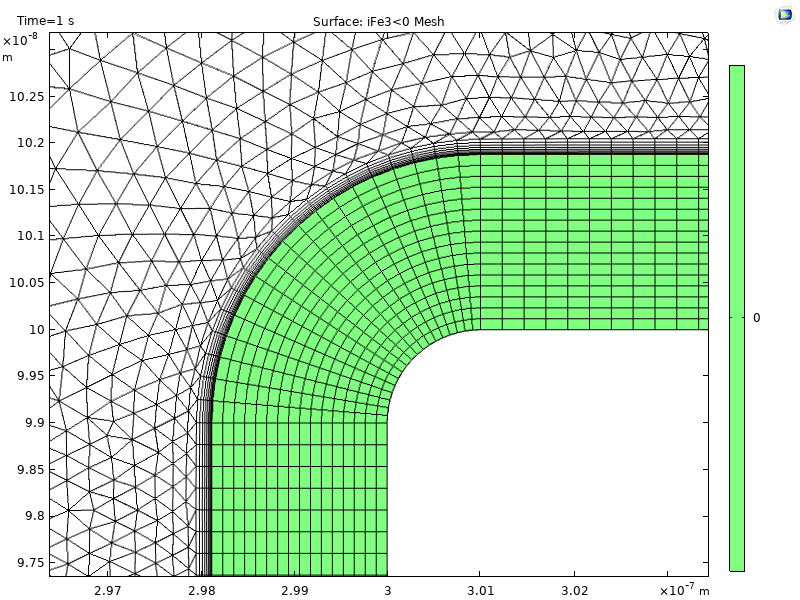

Sure thing. Here's the region in question. I've highlighted the region of negative concentration as you can see that the overall solutions are very similar.
Sure thing. Here's the region in question. I've highlighted the region of negative concentration as you can see that the overall solutions are very similar.
Please login with a confirmed email address before reporting spam
Posted:
4 years ago
9 juil. 2020, 09:12 UTC−4
Updated:
4 years ago
9 juil. 2020, 09:13 UTC−4
So the negative concentrations are only located in regions where the concentration is nearly 0, right?
Could you change the data and/or color range so that the color bar's maximum is 0 ? I'm wondering if the magnitude of the negative concentrations might be neglected.
Also sorry to be inquisitive but your channel is only 2nm wide. Is this correct? It seems extremely narrow to me.
So the negative concentrations are only located in regions where the concentration is nearly 0, right?
Could you change the data and/or color range so that the color bar's maximum is 0 ? I'm wondering if the magnitude of the negative concentrations might be neglected.
Also sorry to be inquisitive but your channel is only 2nm wide. Is this correct? It seems extremely narrow to me.
Please login with a confirmed email address before reporting spam
Posted:
4 years ago
10 juil. 2020, 04:35 UTC−4

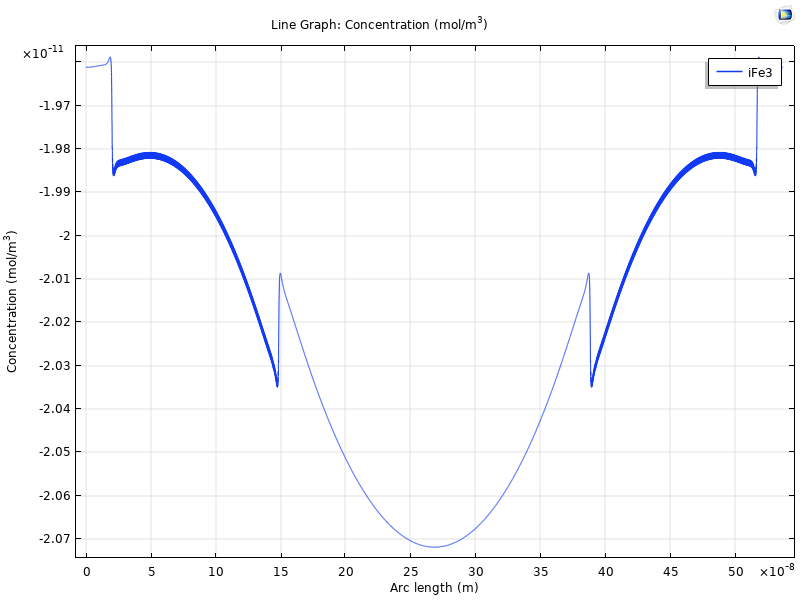

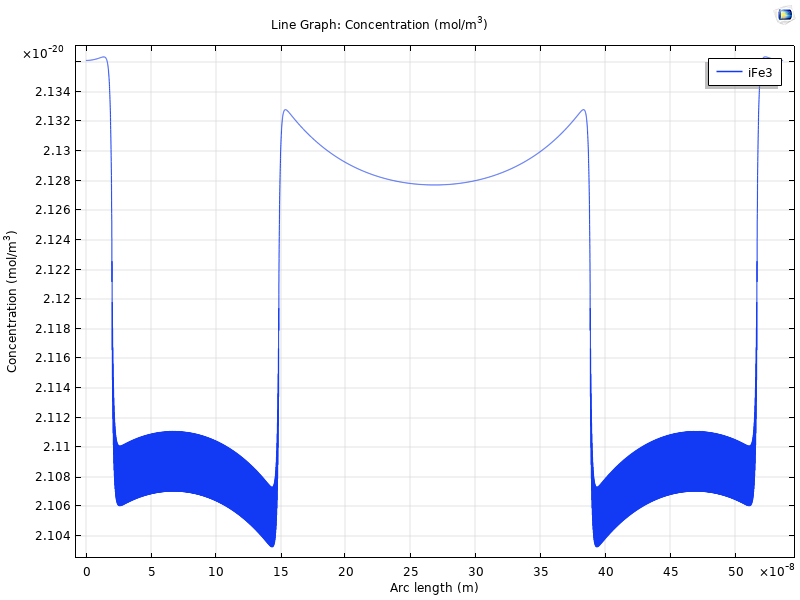

The domain is very small, I'm attempting to model the diffusion and migration of vacancies and interstitials in an passive layer. (Some further information here if you're interested http://dx.doi.org/10.1016/j.electacta.2012.02.008 ). After looking at the data to try and produce the plots requested, I've established that none of the mesh elements appear to be negative concentration. However if I plot the concentration along the outer boundary, or integrate along it I am given a negative concentration. See plots attached. I'm now thinking that this is a discretization issue as the concentration gradient is large at this boundary and the concentration should tend to zero. Perhaps the gradient across the mesh element is overshooting in the stationary case. I don't understand why I get different results between the solvers though.
The domain is very small, I'm attempting to model the diffusion and migration of vacancies and interstitials in an passive layer. (Some further information here if you're interested http://dx.doi.org/10.1016/j.electacta.2012.02.008 ). After looking at the data to try and produce the plots requested, I've established that none of the mesh elements appear to be negative concentration. However if I plot the concentration along the outer boundary, or integrate along it I am given a negative concentration. See plots attached. I'm now thinking that this is a discretization issue as the concentration gradient is large at this boundary and the concentration should tend to zero. Perhaps the gradient across the mesh element is overshooting in the stationary case. I don't understand why I get different results between the solvers though.
Please login with a confirmed email address before reporting spam
Posted:
4 years ago
11 juil. 2020, 05:58 UTC−4
Updated:
4 years ago
11 juil. 2020, 05:58 UTC−4
Very interesting system, thanks for the read!
I would not be very worried about these concentrations. After all ±10⁻¹¹ mol/m³ is essentially 0 for any practical purpose, when the typical scale of concentration is 100 mol/m³
The ratio between the two is in fact not too far from the representation limit of double precision floats anyway.
Another way to look at it is that over a volume of 10 × 10 × 10 nm³, this concentration multiplied by the Avogadro number is many orders of magnitude below 1 ion.
Very interesting system, thanks for the read!
I would not be very worried about these concentrations. After all ±10⁻¹¹ mol/m³ is essentially 0 for any practical purpose, when the typical scale of concentration is 100 mol/m³
The ratio between the two is in fact not too far from the representation limit of double precision floats anyway.
Another way to look at it is that over a volume of 10 × 10 × 10 nm³, this concentration multiplied by the Avogadro number is many orders of magnitude below 1 ion.
