Particle size in Particle tracing module

Posted 30 mai 2020, 15:23 UTC−4 Particle Tracing for Fluid Flow, Geometry, Parameters, Variables, & Functions Version 5.4 3 Replies

Antonia Carchia
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello!

I have a problem with the Particle Tracing in Fluid Flow (ver. 5.4). In particular, I want to set the diameters of the particles but changing the values (for example from 10^-9 m to 1m) I have the same situation. How I can solve this issue?

Thank you so much in advance.

Antonia

3 Replies Last Post 21 juin 2020, 12:59 UTC−4
YINGXIANG LI
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 10 juin 2020, 23:11 UTC−4

I meet the same situation, have you solved this question?

I meet the same situation, have you solved this question?
Alexandre Arsenault
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 11 juin 2020, 10:27 UTC−4

Hello,

Do you mean that you get the same particle sizes in the result plots or that the physics remains the same?

The particle sizes in the plots can be set manually, so that changing the diameter of the particles in the physics will not affect the plots. However, if your physics does not change, you need to make sure that it is set properly so that it does depend on particle size.

Cheers,

Alex

Hello, Do you mean that you get the same particle sizes in the result plots or that the physics remains the same? The particle sizes in the plots can be set manually, so that changing the diameter of the particles in the physics will not affect the plots. However, if your physics does not change, you need to make sure that it is set properly so that it does depend on particle size. Cheers, Alex
Antonia Carchia
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago 21 juin 2020, 12:59 UTC−4
Updated: 4 years ago 21 juin 2020, 13:00 UTC−4

Hello!

Yes, I solved the problem.

You have to set the particle diameter in "Particle Properties" . Then, to correctly visualize the particles in your results you have to do as follows:

  1. Go to Particle trajectories (ftp) in Results
  2. Click Particle trajectories
  3. Go to Coloring and Style section

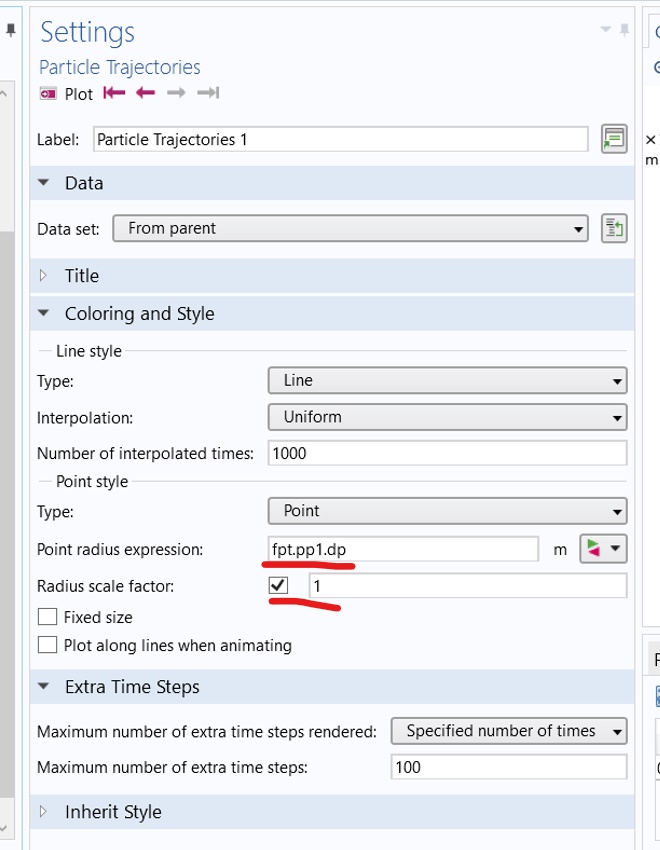

  4. In Point Style select Point Radius expression you have to write: ftp.pp1.dp
  5. In Radius Scale factor you have to write: 1

I hope it can be useful to solve yours problem.

Cheers,

Antonia

Hello! Yes, I solved the problem. You have to set the particle diameter in "Particle Properties" . Then, to correctly visualize the particles in your results you have to do as follows: 1. Go to Particle trajectories (ftp) in Results 2. Click Particle trajectories 3. Go to Coloring and Style section 4. In Point Style select Point Radius expression you have to write: **ftp.pp1.dp** 5. In Radius Scale factor you have to write: **1** I hope it can be useful to solve yours problem. Cheers, Antonia
