How to simulate a wall without using Contact?

Posted 26 févr. 2020, 09:36 UTC−5 Structural Mechanics Version 5.5 1 Reply

Andreas
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Is there a way to simulate a wall without using the contact-node? I don't want my geometry to deform past a certain boundary. (which is horizontal, if that helps...)

regards and thank you

1 Reply Last Post 28 févr. 2020, 06:58 UTC−5
Andreas
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 28 févr. 2020, 06:58 UTC−5
Updated: 5 years ago 28 févr. 2020, 07:08 UTC−5

I found a way by defining a prescribed displacement with the diagonal H-vector being set at 0;0 for the upper and 0;1*(y>y_wall) for the lower row. this way, the only constraint is in positive y-direction when y>y_wall is true.

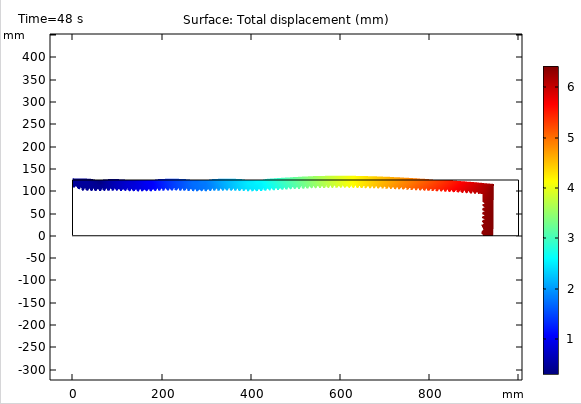

it works for parts of the boundary with limited mechanical stress (left in picture), but seems to have problems when stresses get higher. (right in picture) Is it possible that the deflections due to mechanical stress are greater than what the solver can correct? I tried to reduce the maximum step contraint, but it has not changed anything.

I found a way by defining a prescribed displacement with the diagonal H-vector being set at 0;0 for the upper and 0;1*(y>y_wall) for the lower row. this way, the only constraint is in positive y-direction when y>y_wall is true. it works for parts of the boundary with limited mechanical stress (left in picture), but seems to have problems when stresses get higher. (right in picture) Is it possible that the deflections due to mechanical stress are greater than what the solver can correct? I tried to reduce the maximum step contraint, but it has not changed anything.

Attachments:
