Can not see work plane in model builder

Posted 22 oct. 2019, 09:19 UTC−4 2 Replies

Lavanya Jakka
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I am following the PDF documentation of Heating circuit example. In geometry1, after creating the block, the next step is click work plane. But I dont see a work plane in my model builder under Geometry 1.

2 Replies Last Post 22 oct. 2019, 16:29 UTC−4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 22 oct. 2019, 13:23 UTC−4
Updated: 5 years ago 22 oct. 2019, 09:23 UTC−4

Hello Lavanya,

I am assuming you are working off of this pdf: https://www.comsol.com/model/download/542291/models.acdc.heating_circuit.pdf

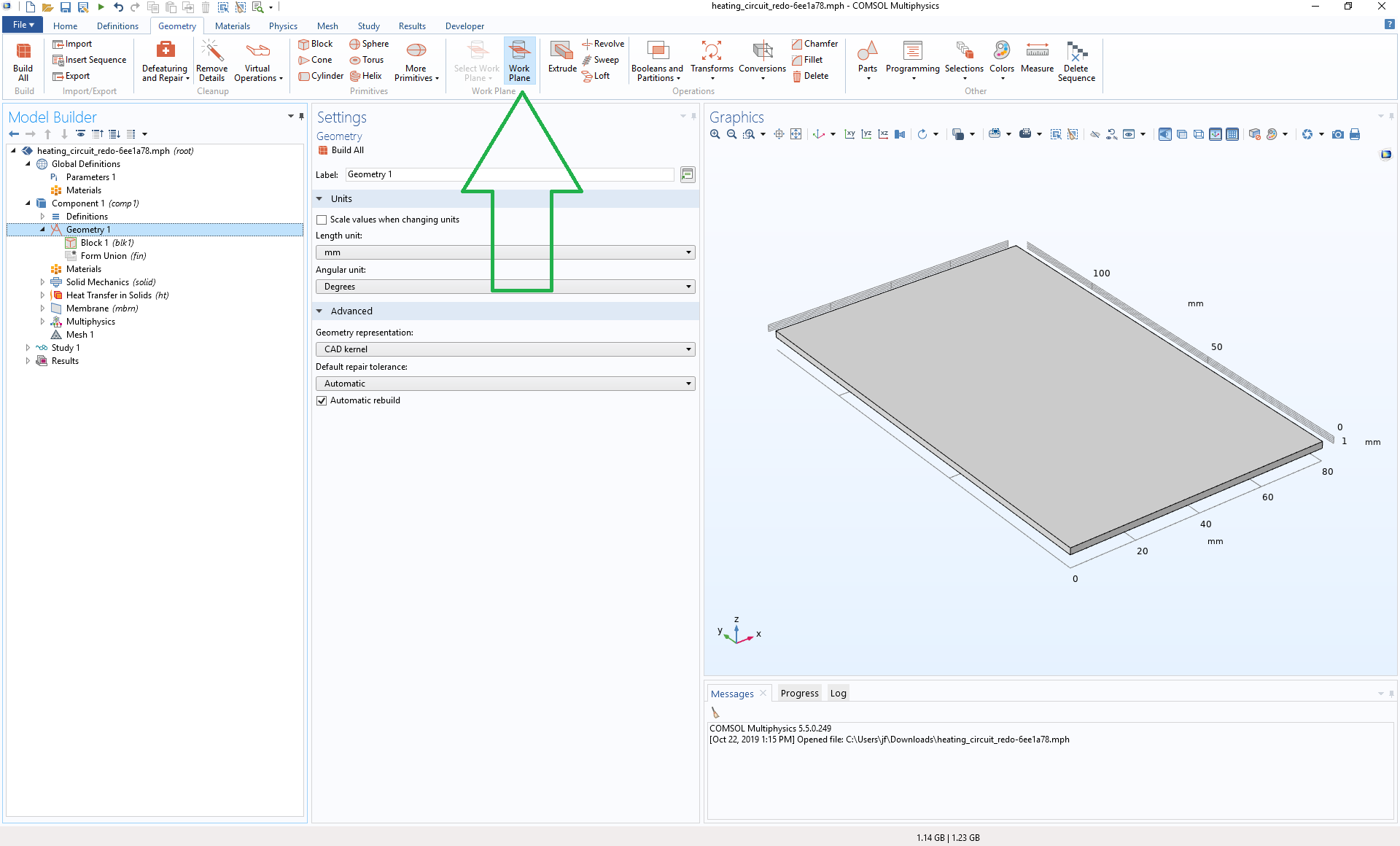

If so, the instructions tell you to click on work plane in the Geometry toolbar, i.e. in the ribbon of icons that appears when the Geometry tab is selected, see attached screenshot.

If you are using the software on Mac OS or Linux, the ribbon does not look like in my attached screenshot. You can still perform the same operation by right-clicking on the Geometry 1 node in the Model Builder and selecting Work Plane.

Let me know if I misunderstood.

Best,

Jeff

-------------------
Jeff Hiller
Hello Lavanya, I am assuming you are working off of this pdf: https://www.comsol.com/model/download/542291/models.acdc.heating_circuit.pdf If so, the instructions tell you to click on work plane in the Geometry toolbar, i.e. in the ribbon of icons that appears when the Geometry tab is selected, see attached screenshot. If you are using the software on Mac OS or Linux, the ribbon does not look like in my attached screenshot. You can still perform the same operation by right-clicking on the Geometry 1 node in the Model Builder and selecting Work Plane. Let me know if I misunderstood. Best, Jeff

Attachments:

Lavanya Jakka
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 22 oct. 2019, 16:29 UTC−4
Updated: 5 years ago 22 oct. 2019, 12:29 UTC−4

Yes, exactly. Thank you Jeff.

Yes, exactly. Thank you Jeff.
