Calculating total power in the far field

Posted 30 avr. 2019, 14:54 UTC−4 RF & Microwave Engineering, Wave Optics Version 5.4 5 Replies

Amer Abu Arisheh
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello

How can I find the total power in the far field? Can I do this by integrating the following expression over the simulation sphere:

ewfd.(normE^2)/(2*Z0_const)

When I do this I get a very small value

5 Replies Last Post 2 mai 2019, 18:50 UTC−4
Pu
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 30 avr. 2019, 18:12 UTC−4

It depends on what your problem looks like.

-------------------
ZHANG, Pu
School of Physics,
Huazhong University of Science and Technology
It depends on what your problem looks like.
Amer Abu Arisheh
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 30 avr. 2019, 19:17 UTC−4

It depends on what your problem looks like.

Thanks for your reply. I illuminate a nanosphere with a plane wave and I want to find the total power scattered in the far field. When I integrate ewfd.(normE^2)/(2Z0const) over the main sphere I get an extremely small value.

>It depends on what your problem looks like. Thanks for your reply. I illuminate a nanosphere with a plane wave and I want to find the total power scattered in the far field. When I integrate ewfd.(normE^2)/(2Z0const) over the main sphere I get an extremely small value.
Pu
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 1 mai 2019, 12:25 UTC−4

You can simply integrate the Poynting vector over a closed surface.

-------------------
ZHANG, Pu
School of Physics,
Huazhong University of Science and Technology
You can simply integrate the Poynting vector over a closed surface.
Amer Abu Arisheh
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 1 mai 2019, 18:43 UTC−4

You can simply integrate the Poynting vector over a closed surface.

Thanks alot for your reply. I'm interested in the total power scattered to the far field. I made a typo error in the expression in my previous power.. I meant it is ewfd.(normEfar^2)/(2Z0const)

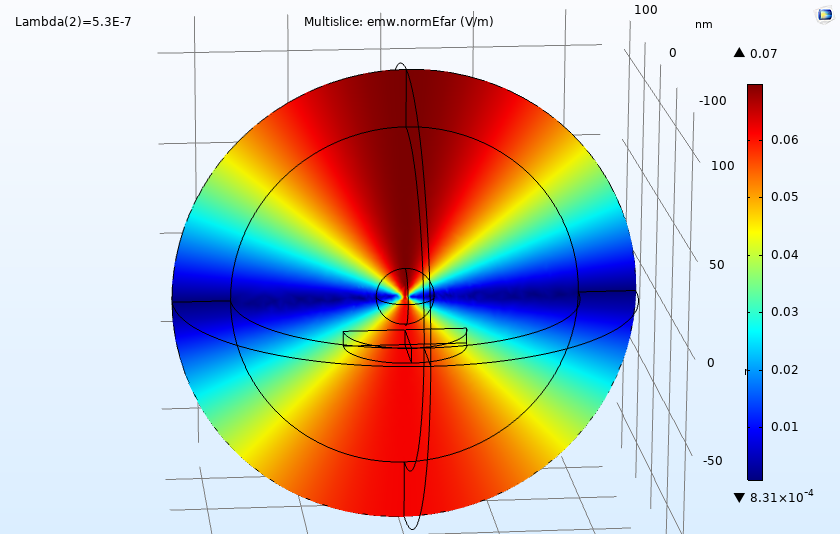

At what distance should I make the surface integration? The variable normEfar is calculated in comsol at 1[m] so I think it is constant with the distance..it only differs with the angle as shown in the attached figure.. so why my result differ when I integrate over closed surfaces with different radius?

>You can simply integrate the Poynting vector over a closed surface. Thanks alot for your reply. I'm interested in the total power scattered to the far field. I made a typo error in the expression in my previous power.. I meant it is ewfd.(normEfar^2)/(2Z0const) At what distance should I make the surface integration? The variable normEfar is calculated in comsol at 1[m] so I think it is constant with the distance..it only differs with the angle as shown in the attached figure.. so why my result differ when I integrate over closed surfaces with different radius?

Attachments:

Pu
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 2 mai 2019, 18:50 UTC−4

Energy conservation ensures one can calculate the power in the near field. Or maybe you are interested in more than the final result?

-------------------
ZHANG, Pu
School of Physics,
Huazhong University of Science and Technology
Energy conservation ensures one can calculate the power in the near field. Or maybe you are interested in more than the final result?
