Creating a 2D surface with a line and varying thickness
Posted 29 avr. 2019, 18:23 UTC−4 Geometry, Optimization, Structural Mechanics 1 Reply
Please login with a confirmed email address before reporting spam
Hello COMSOL users,

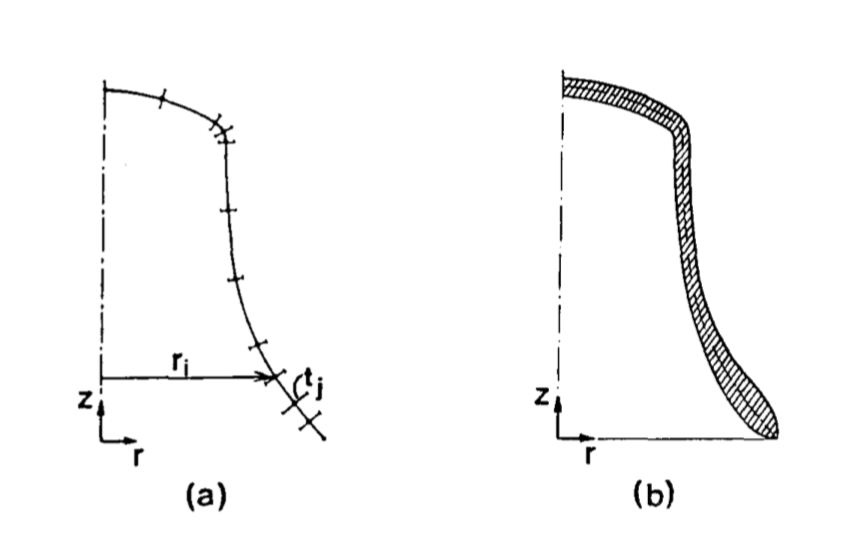

I want to create a 2D surface from a single line with varying thickness. (Please see the image attached.) I wonder if this is possible in COMSOL. (probably setting the thickness var as a parameter) After making it as a surface, I will rotate it and make it as a 3D model. If I use an optimization module, can the thickness be used as a variable in the objective function? I want to change thickness as well as the length of the initial line to find some desired eigenfrequencies. I just began studying COMSOL and don't know if this is possible in COMSOL. Please let me know.
DL
Attachments:
Please login with a confirmed email address before reporting spam
Hello D,
You could use two parametric curves to define the inner and outer shapes, and make those curves depend on a finite number of parameters, and then optimize on those parameters. The tutorial entitled Optimizing the shape of a horn illustrates such an optimization. This blog on shape optimization should also be helpful.
Best regards,
Jeff
-------------------Jeff Hiller
