Impedance between two electrodes
Posted 15 avr. 2019, 18:47 UTC−4 Electromagnetics, Low-Frequency Electromagnetics, Biosciences Version 5.3a 0 Replies
Please login with a confirmed email address before reporting spam
Hi all,

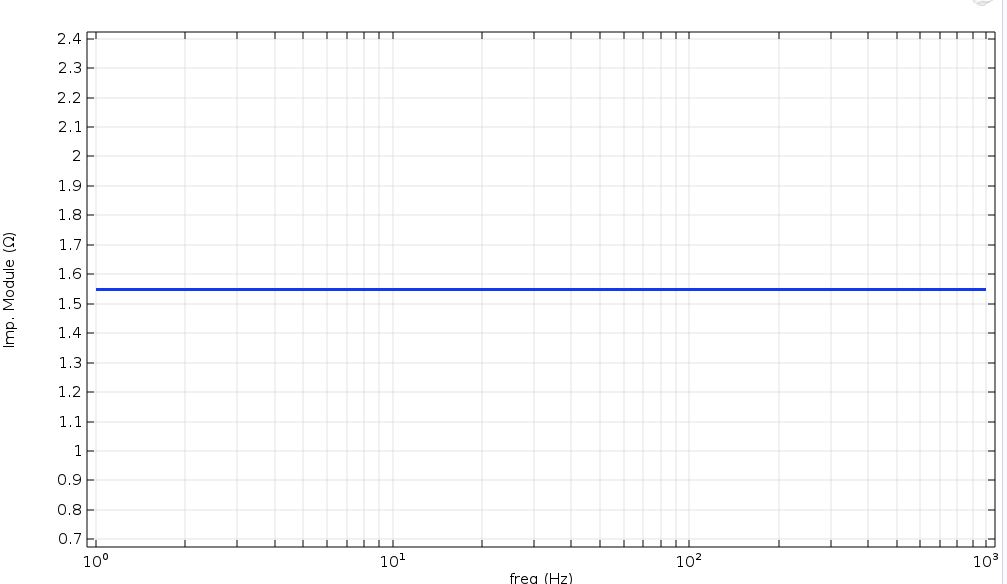

I have problems calculating the impedance as a function of frequency between two metal electrodes, within a liquid medium using Comsol 5.3 and "Electric current(ec)" module. I used frequency domain and parametric sweep, after computing the model I go to global evaluation and add the expression "abs(1/ec.Y11)" (Inverse of Admittance = Impedance), however I obtained a fixed value for all frequencies, which doesnt make any sense. What could be the error here?
Attachments:
