Creating separate subdomains

Posted 11 mars 2019, 08:15 UTC−4 Fluid & Heat, Computational Fluid Dynamics (CFD), Geometry Version 4.0a 0 Replies

Donal Murphy
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

I'm fairly new to comsol and am currently having a bit of trouble creating two separate domains within the same geometry for a fluid flow problem. I'm working with a simple two dimensional geometry of a reaction tank. Within this geometry is the rotating domain (impeller region) and the stationary domain (tank walls). These are the two separate domains I want.

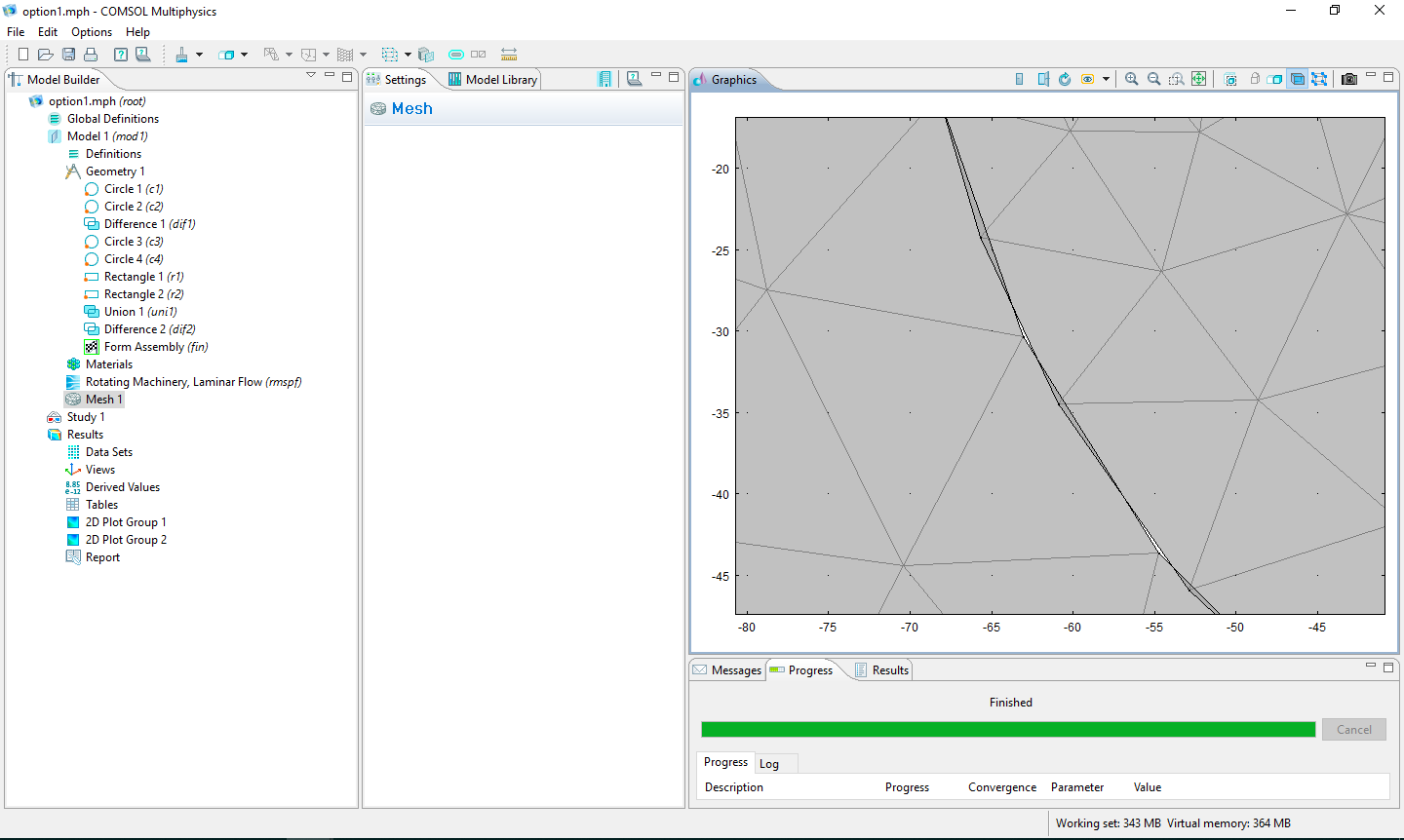

I've attempted to "cut" the outline of the rotating geometry out of the stationary geometry and then import and insert the rotating geometry into the gap left behind. I had hoped this would create two non-oveplapping domains but when I went to mesh the geometry, there were several operlaps and gaps between the two domains.

Does anybody know how to create two non-overlapping domains in a 2D geometry without this happening ?

Thanks, Dónal

0 Replies Last Post 11 mars 2019, 08:15 UTC−4
COMSOL Moderator

Hello Donal Murphy

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
