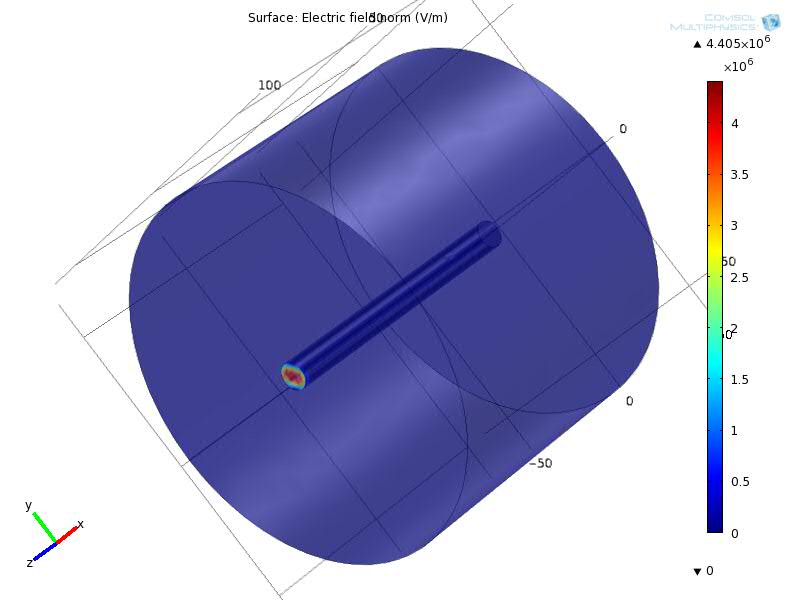

I want to view the electromagnetic field (in particular the norm of E) in the core of 3D fiber model. Through the Boundary Mode Analysis 1, 2 and Frequency Domain of the RF Module, I got the result of some data.

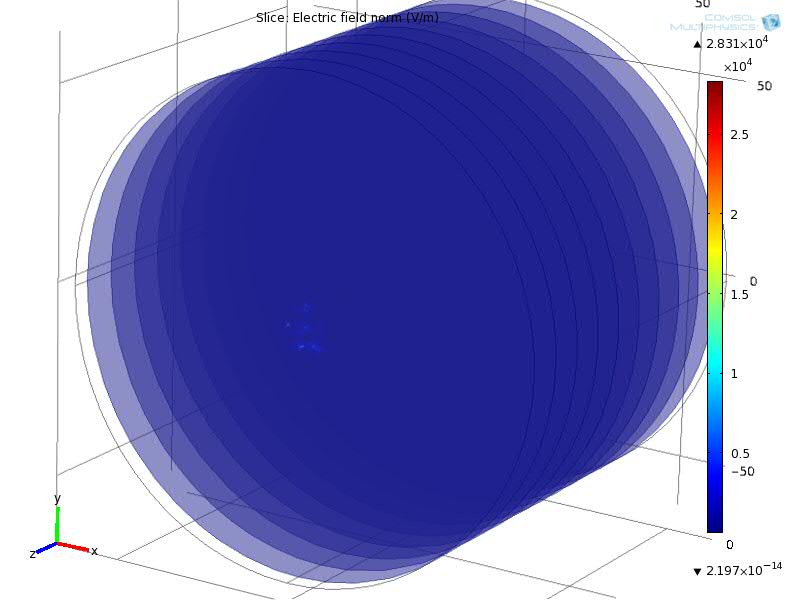

I could not look for the states of progress of the complete Electric Field(or lightwave) like the attached jpg file.
I thought that I properly set up two ports(Numeric). Why did this result come about?
I appreciate your review, I also attach a mph file(ver. 4.0a).
Attachments:
Hello Yong Soo Kim
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
Please login with a confirmed email address before reporting spam
I have the same problem as you had. I have challenged with my structure for several days, but I have not yet found how to deal with.
I'll appreciate it if you could share your structure (or send it to my email) if you have solved it.
ahajebi2000@gmail.com
Thank you in advance.
Akram
Please login with a confirmed email address before reporting spam
Have you solved this model yet? I am seeing some kind of electric field distribution but it does not propagate through the fiber (it "fades away" immediately after the input port).
If you have a solved model that you are willing to share, or any advice would be much appreciated.
Thanks,
Dennis
