How to change time unit in second to hour, day, year... in result graphic.

Posted 16 sept. 2011, 04:52 UTC−4 Results & Visualization, Studies & Solvers Version 4.2 3 Replies

Joke Lee
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi everyone,

I searched many times in this forum for this thing, but I can't find out the answer...

My problem is that I want to change time unit in second (by default in Comsol) to hour, day in the result graphic, because my model result graphic display the testing assuming time about a week, a month... in the nature but now it still displays in second for a week (=60*60*24*7 (seconds)) or a month...

Hope anyone can help me, pls.

Thank you for your attention.
3 Replies Last Post 17 sept. 2011, 11:51 UTC−4
Lechoslaw Krolikowski
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 16 sept. 2011, 08:03 UTC−4
Hi,

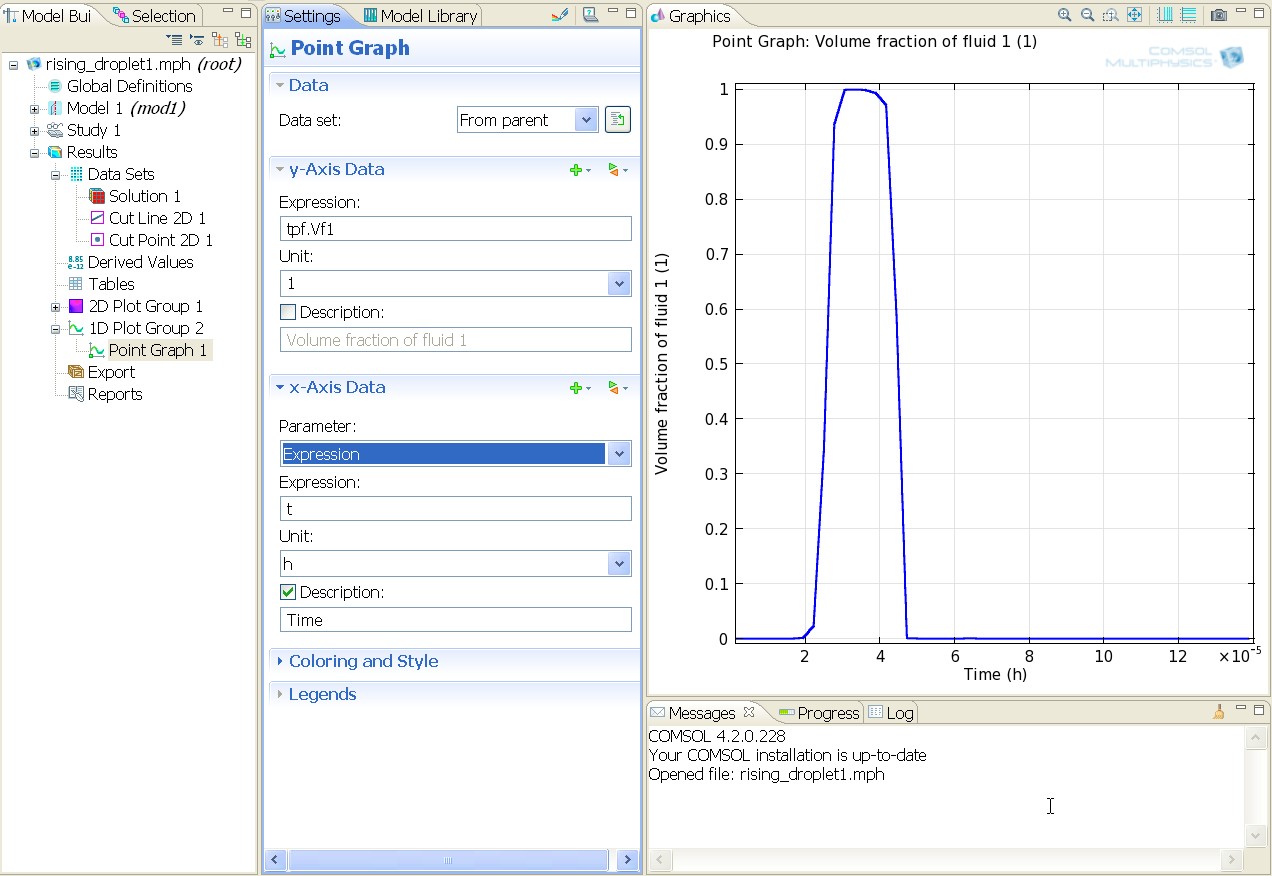

I hope that the attached picture answers your question.

Hi, I hope that the attached picture answers your question.

Attachments:

Rakesh Dhote
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 16 sept. 2011, 08:47 UTC−4
I suggest a simple solution.
Use the expression for time t/(24*60*60) for a day... and so on.
Change the axis label to day.
I suggest a simple solution. Use the expression for time t/(24*60*60) for a day... and so on. Change the axis label to day.
Joke Lee
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 17 sept. 2011, 11:51 UTC−4
Thank you for your answers. I did with your way and got it well.
Thank you for your answers. I did with your way and got it well.
