How to apply a time dependent sinusoidal body load?

Posted 22 août 2018, 16:43 UTC−4 Structural & Acoustics, Parameters, Variables, & Functions, Studies & Solvers 4 Replies

punnagNCSU
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I have a solid mechanics module + time dependent study. How can I apply a sinusoidal time dependent load (to simulate sinusoidal base excitation)?

-------------------
P.C.
4 Replies Last Post 23 août 2018, 10:58 UTC−4
Dave Greve Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 22 août 2018, 17:14 UTC−4

BEFORE doing a time dependent study- find out whether a frequency dependent (sinusoidal steady state) analysis is sufficient.

Sinusoidal steady state is easier to set up and almost always converges.

BEFORE doing a time dependent study- find out whether a frequency dependent (sinusoidal steady state) analysis is sufficient. Sinusoidal steady state is easier to set up and almost always converges.
punnagNCSU
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 22 août 2018, 17:18 UTC−4
Updated: 6 years ago 22 août 2018, 17:18 UTC−4

@D Greve, thanks for the reply.

Hi I am looking for nonlinear (geometric) large deflection response and I think time dependent would be most apt.

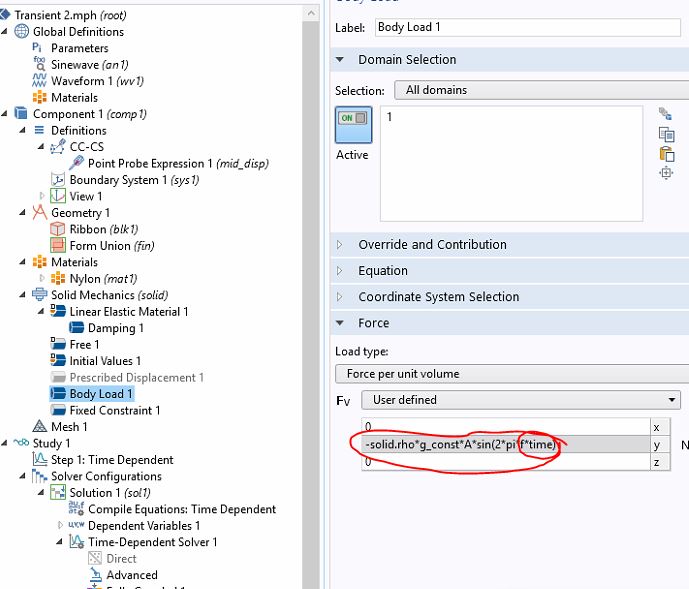

I am trying to apply the load (base excitation) as a body force (as shown in the snapshot attacked to my 1st post). Any suggestions?

-------------------
P.C.
@D Greve, thanks for the reply. Hi I am looking for nonlinear (geometric) large deflection response and I think time dependent would be most apt. I am trying to apply the load (base excitation) as a body force (as shown in the snapshot attacked to my 1st post). Any suggestions?
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 23 août 2018, 07:22 UTC−4

You can type a mathematical expression like the one in your screenshot, but the variable for time is "t", not "time".

Best,

Jeff

-------------------
Jeff Hiller
You can type a mathematical expression like the one in your screenshot, but the variable for time is "t", not "time". Best, Jeff
Dave Greve Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 23 août 2018, 10:58 UTC−4

Hi I am looking for nonlinear (geometric) large deflection response

In that case I agree you will need to do time dependent analysis.

Be aware that the system may take a very long time to reach steady state if it is lightly damped. Running a very long time-dependent simulation takes considerable computation time and may diverge.

> Hi I am looking for nonlinear (geometric) large deflection response In that case I agree you will need to do time dependent analysis. Be aware that the system may take a very long time to reach steady state if it is lightly damped. Running a very long time-dependent simulation takes considerable computation time and may diverge.
