microfluidics
Posted 13 juin 2011, 09:50 UTC−4 2 Replies
Please login with a confirmed email address before reporting spam
my geometry is a rectangular having 10mm in x direction and 1mm in y-direction.
the first half ( up to x=5mm) consists of one fluid and second half consists of other fluid having same properties.
top and bottom walls are moving walls with 0.05m/s velocity . the left and right boundaries are stationary.
at x=5 mm i have two edges.
I want to equate the shear stresses on these bounadires. is it possible in COMSOL?
Hello Siva Kumar
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
Please login with a confirmed email address before reporting spam
hai all
my geometry is a rectangular having 10mm in x direction and 1mm in y-direction.
the first half ( up to x=5mm) consists of one fluid and second half consists of other fluid having same properties.
top and bottom walls are moving walls with 0.05m/s velocity . the left and right boundaries are stationary.
at x=5 mm i have two edges.
I want to equate the shear stresses on these bounadires. is it possible in COMSOL?
Hi Siva,
Did you solve your problem? I am facing similar problem.
Basant
Please login with a confirmed email address before reporting spam
are you using TPF (two phase flow ?) in which case the "continuity" should be done by default by COMSOL, however I'm not fully sure how to set the two boundary conditions to get this to look nice, I tried with two inlets of known velocity gradient but then I block the outflow of one species

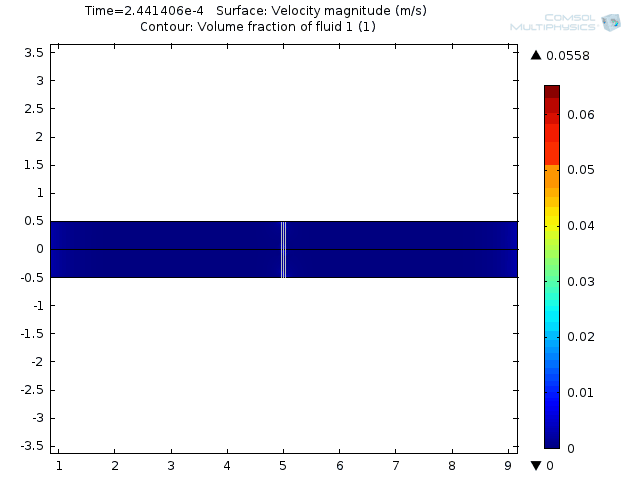

The model is v4.3a TPF Level set laminar and take some time to solve ;)
--
Good luck
Ivar
Attachments:
