How to keep irregular edges from a DEM

Posted 20 juil. 2018, 06:45 UTC−4 Porous Media Flow, Geometry 2 Replies

Fatima Halari
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello,

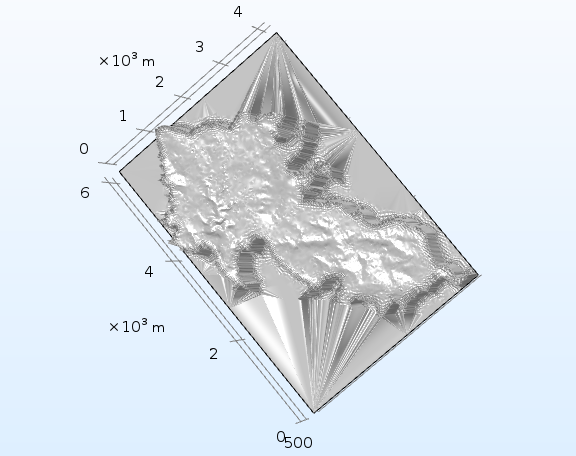

I am trying to build a geometry by importing a DEM and several subsurface layers for a hydrogeological model, which I have created in ArcMap. I am able to bring these surfaces into my project and build parametric surfaces for them. However, these files have irregular edges and comsol assignes the surfaces a rectangular edge based on the extent of the file. Is it possible to keep these irregular edges or to cut out the extra using a mask of some sort?

Attachments:

2 Replies Last Post 25 juil. 2018, 07:41 UTC−4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 20 juil. 2018, 08:29 UTC−4

Hello Fatima,

See this older thread where I discuss a way to handle this type of situation.

Best,

Jeff

-------------------
Jeff Hiller
Hello Fatima, See [this older thread](https://www.comsol.com/forum/thread/143132/importing-odd-shape-dem-and-xyz-available?last=2017-05-03T16:33:44Z) where I discuss a way to handle this type of situation. Best, Jeff
Fatima Halari
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 25 juil. 2018, 07:41 UTC−4

Thank you Jeff - I missed this one!

Regards,

Fatima

Thank you Jeff - I missed this one! Regards, Fatima
