COMSOL slice plot inappropriately truncated
Posted 12 juil. 2018, 00:13 UTC−4 Low-Frequency Electromagnetics Version 5.3a 0 Replies
Please login with a confirmed email address before reporting spam
Hi there,
I am modelling the B fields generated by a set of coils around a vacuum chamber. The chamber is currently represented as a hollow sphere. The chamber is smaller than the coils surrounding it.
After I computer my result, I would like to use slice plots. However, the slice plot is only generated inside the chamber, not the entire volume of the study I have defined.

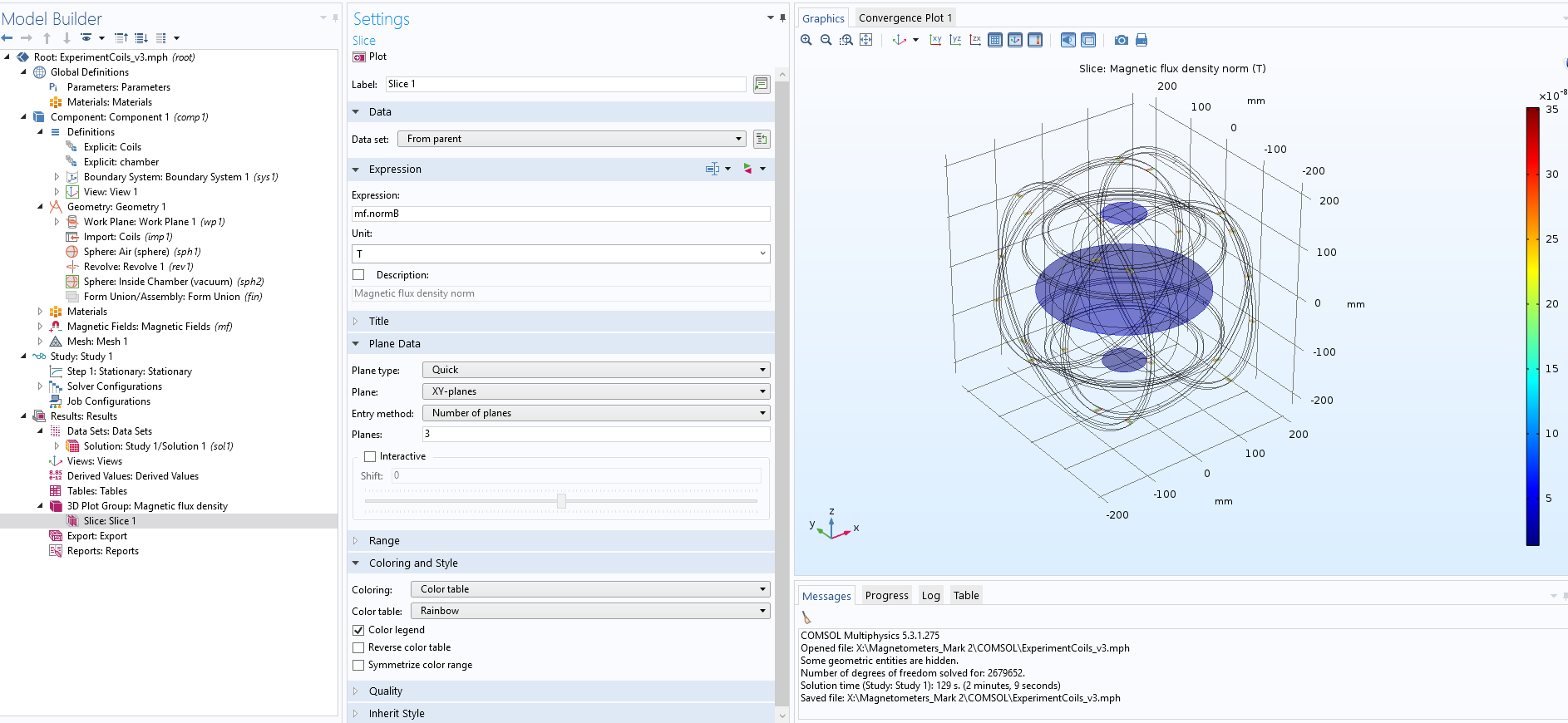

In the attached photo, you can see 3 slices are plotted, but these slices are constrained to be inside the vacuum chamber I have defined. I want them to extend well past this into the region with the coils. I defined a much larger enclosing sphere of air which has the coils and chamber inside it. Why won't the slices fill this larger area? How can I fix this?
Thank you in advance.
