3D plot: Reflectance of surface

Posted 29 mars 2018, 09:17 UTC−4 General, Results & Visualization Version 5.3a 6 Replies

Yuri Skorov Planetary Science
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello everyone Tell me, please, how to remove the highlight (glare) presenting at surface in 3D plot? In older versions it was possible to determine "Reflectance of surface" dull/sunny/metall... How can I get surface without specular reflection? Thanks!

6 Replies Last Post 29 mars 2018, 11:23 UTC−4
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 29 mars 2018, 09:24 UTC−4

Hi Yuri,

Just click the "Scene Light" icon at the top of the Graphics window.

Best,

Jeff

-------------------
Jeff Hiller
Hi Yuri, Just click the "Scene Light" icon at the top of the Graphics window. Best, Jeff
Yuri Skorov Planetary Science
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 29 mars 2018, 09:43 UTC−4

Thank you, Jeff! Only this option? Can I change type of reflectance and/or position? The V3.5 had more options :)

Thank you, Jeff! Only this option? Can I change type of reflectance and/or position? The V3.5 had more options :)
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 29 mars 2018, 10:17 UTC−4
Updated: 7 years ago 29 mars 2018, 10:20 UTC−4

Yes, there are many more options under the View node's Light tab. The above was just the shortcut to turn in on and off.

Jeff

-------------------
Jeff Hiller
Yes, there are many more options under the View node's Light tab. The above was just the shortcut to turn in on and off. Jeff
Yuri Skorov Planetary Science
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 29 mars 2018, 10:43 UTC−4

Thanks for the support, but I can not agree. For example, I can not change the transparency level, I can not set the edge color and so on. When you talk about "more options under the View node's Light tab", are you really talking about options related to lighting/reflectance? I use comsol on linux and I can only turn on/off Scene Light. Something else?

Thanks for the support, but I can not agree. For example, I can not change the transparency level, I can not set the edge color and so on. When you talk about "more options under the View node's Light tab", are you really talking about options related to lighting/reflectance? I use comsol on linux and I can only turn on/off Scene Light. Something else?
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 29 mars 2018, 11:06 UTC−4

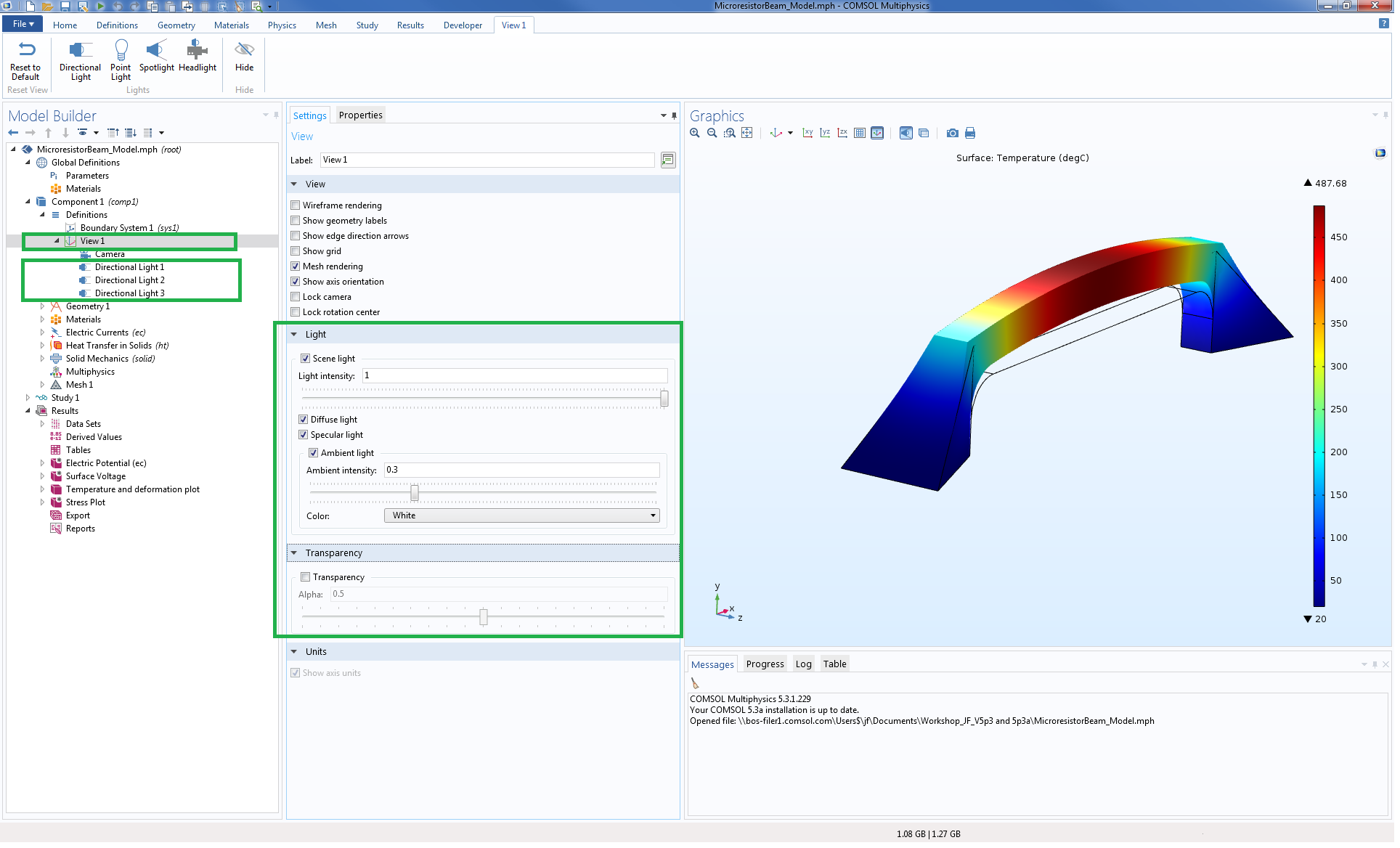

See attached screenshot.

Best,

Jeff

-------------------
Jeff Hiller
See attached screenshot. Best, Jeff

Attachments:

Yuri Skorov Planetary Science
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 29 mars 2018, 11:23 UTC−4

Thanks!

Thanks!
